The vibrating conveyor (also known as a vibrating feeder) is a key equipment that utilizes the principle of vibration to achieve uniform, continuous, or quantitative conveyance of materials. It is widely used in production processes across multiple industries, including mining, metallurgy, coal, building materials, chemical, and food. Its primary function is to stably convey blocky, granular, and powdered materials from storage bins or hoppers to downstream equipment (such as crushers, vibrating screeners, conveyors, and packaging machines), while also enabling preliminary screening of the materials.
wheat, corn, rice, soybeans, flour, starch, white sugar, milk powder, cocoa powder, edible salt, miscellaneous grains, frozen meat chunks, etc
Pharmaceutical industry: medicinal powder, traditional Chinese medicine granules, western medicine excipients, capsule granules, medicinal starch, vitamin powder, traditional Chinese medicine decoction pieces, pharmaceutical intermediates, medicinal excipient powder, etc
soda ash powder, urea granules, PVC powder, chemical pigments, desulfurization gypsum, catalysts, chemical intermediates, edible alkali, sodium bicarbonate, potassium dihydrogen phosphate, chemical raw materials, PVC granules, PE granules, etc
ore particles, limestone particles, quartz sand, basalt particles, cement powder, fly ash, sand and gravel aggregates, putty powder, talcum powder, machine-made sand, etc
desulfurization gypsum, catalysts, environmentally friendly powders, environmentally friendly chemical raw materials, environmentally friendly auxiliary materials, etc

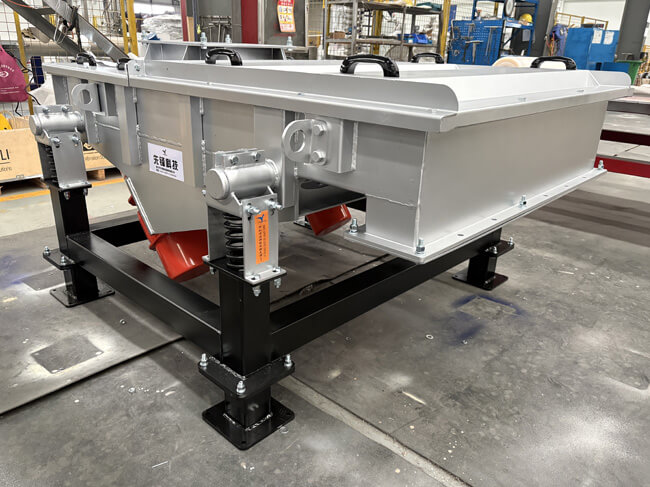

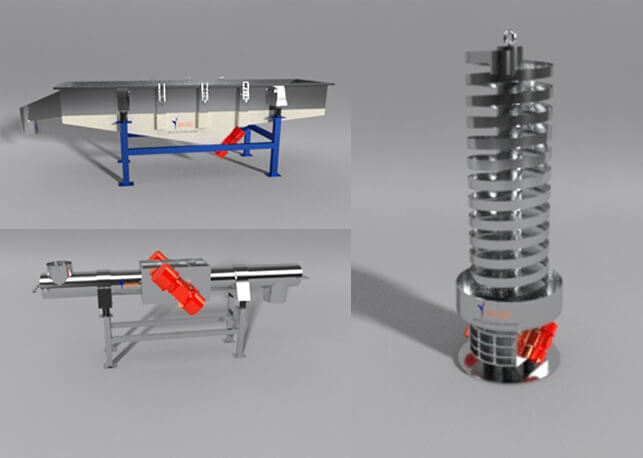

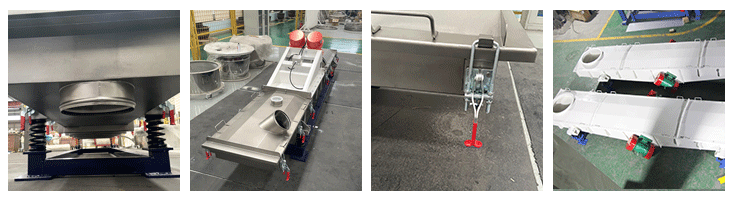

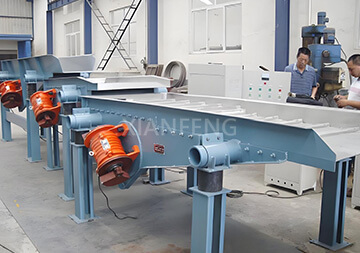

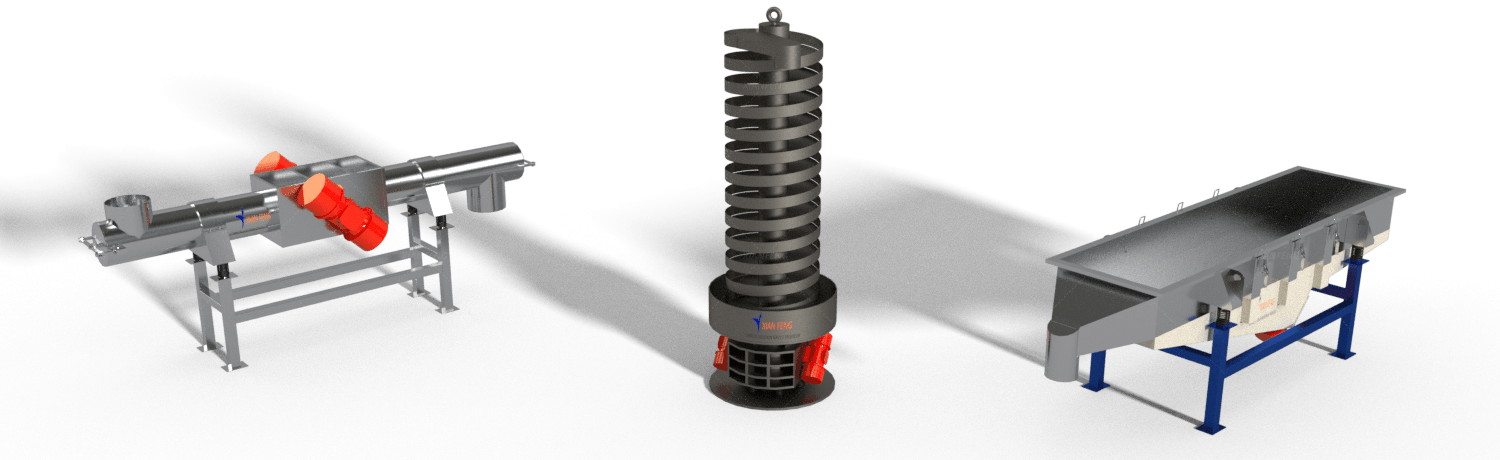

Horizontal vibrating feeder

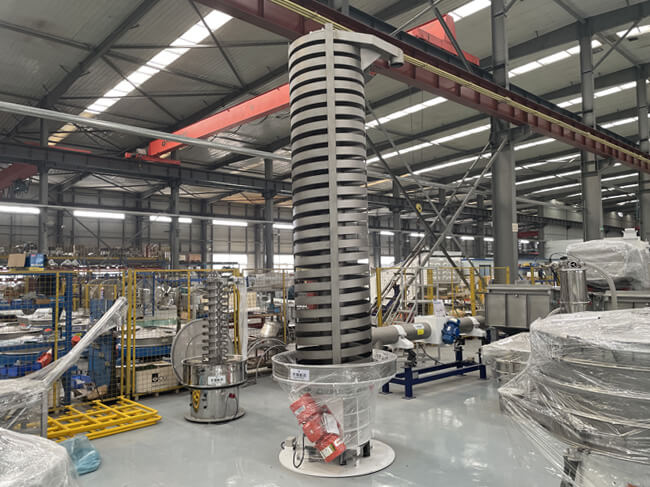

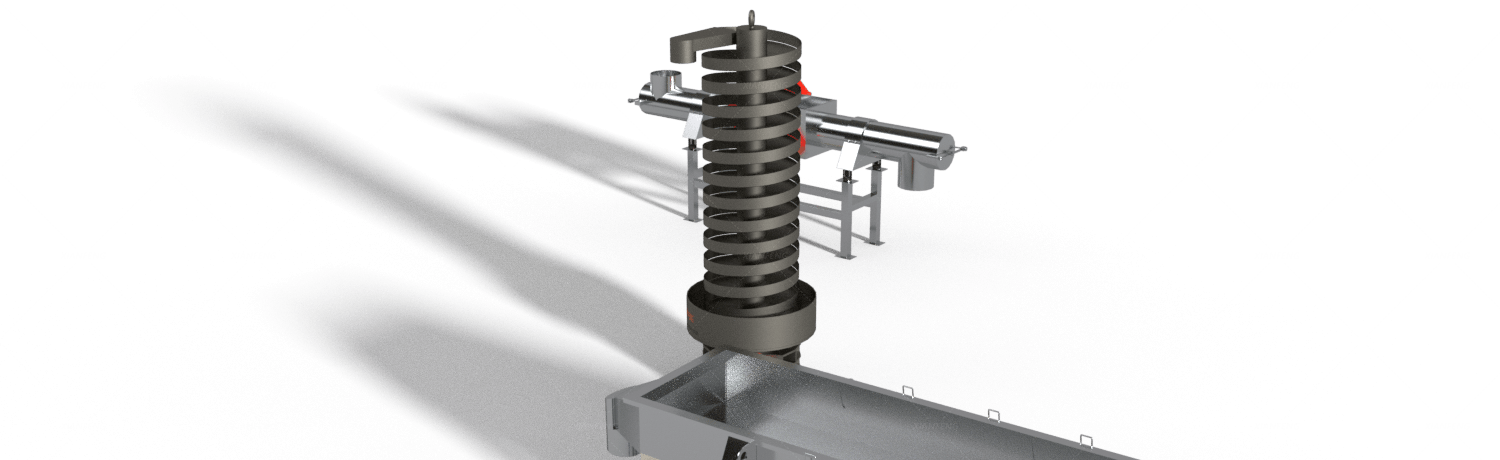

Vibrating screw feeder

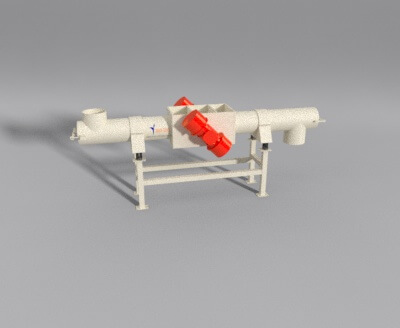

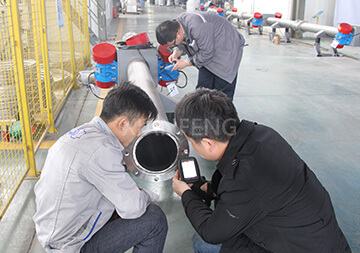

Tubular vibrating feeder
Available in carbon steel/stainless steel, with dustproof cover to effectively isolate dust during powder material conveying.
Imported Ouli Wolong motor ensures uniform amplitude and quantitative feeding.
Diverse customization options, including water cooling, air cooling, and spraying, with length and height customized to match different upstream and downstream equipment as needed.
The height and material can be customized to suit different industries.
Imported Ouli Wolong motor ensures precise control of vibration trajectory and uniform material ascent speed.
High-strength composite springs, support bases, and anchor fixing components isolate vibration transmission.
304/316L stainless steel pipe, with good sealing, can be customized with explosion-proof, water-cooled and other functions.
Equipped with imported Ouli Wolong motors, it boasts low energy consumption and high efficiency.
The structure is polished smooth, free of burrs and without contaminating the material.
The working principle of the vibrating feeder is to utilize two vibrating motors rotating synchronously in opposite directions to generate a directional excitation force, which drives the material chute to perform linear jumping reciprocal vibration, enabling continuous, uniform, and stable horizontal or vertical conveyance of materials.

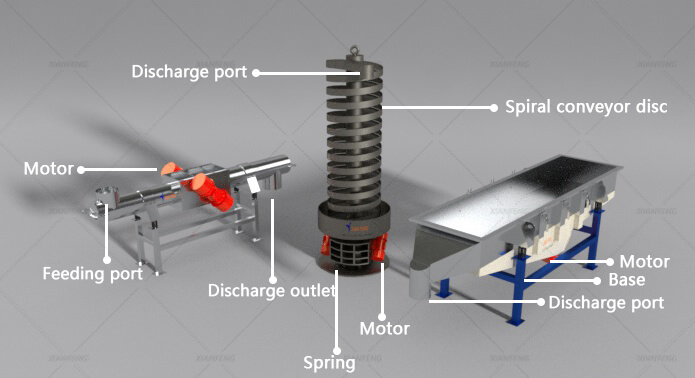

· Spring: High-load-bearing, high-elasticity spring, providing efficient shock absorption and wear resistance. · Motor: Imported Ouli Wolong motor is adopted, featuring high amplitude and low power for greater energy efficiency. Explosion-proof motors can be selected to meet special needs. · Cone: The unique high-strength steel conical design ensures that the vibrating force is evenly distributed to the screen frame and screen surface, reducing energy loss and enhancing screening efficiency. · Base: Rigid support for anti-resonance, with an optimized built-in shock absorption structure to reduce impact on the ground and ensure the safety of the equipment.

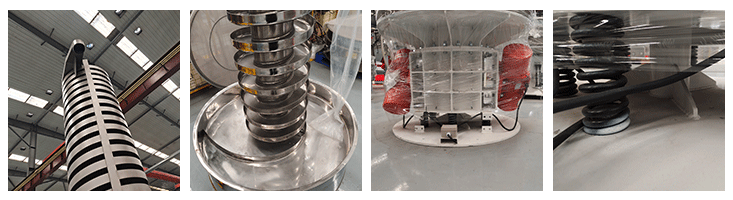

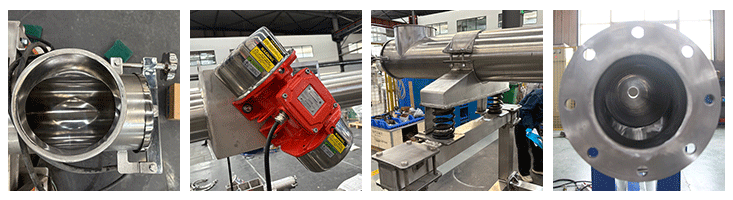

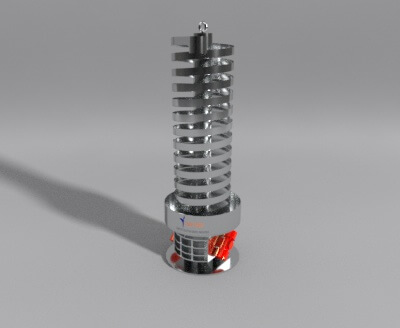

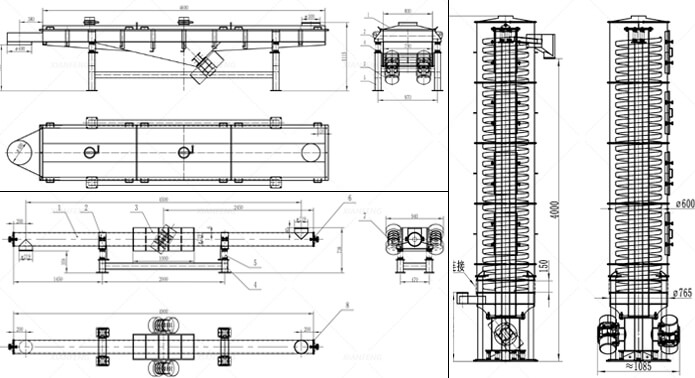

Horizontal vibrating conveyor: Dust cover: Its primary function is to prevent the spillage of internal materials or dust during feeding. It can be customized according to actual conditions to fit and connect with different feeding equipment. Spiral vertical vibrating conveyor: The spiral ascending chute and the central support riser ensure uniform vibration transmission, resulting in a stable conveying trajectory. Tube vibrating conveyor: stainless steel conveyor tube, built-in wear-resistant lining tube, and customizable water-cooled structure for the fixed flange of the tube body.

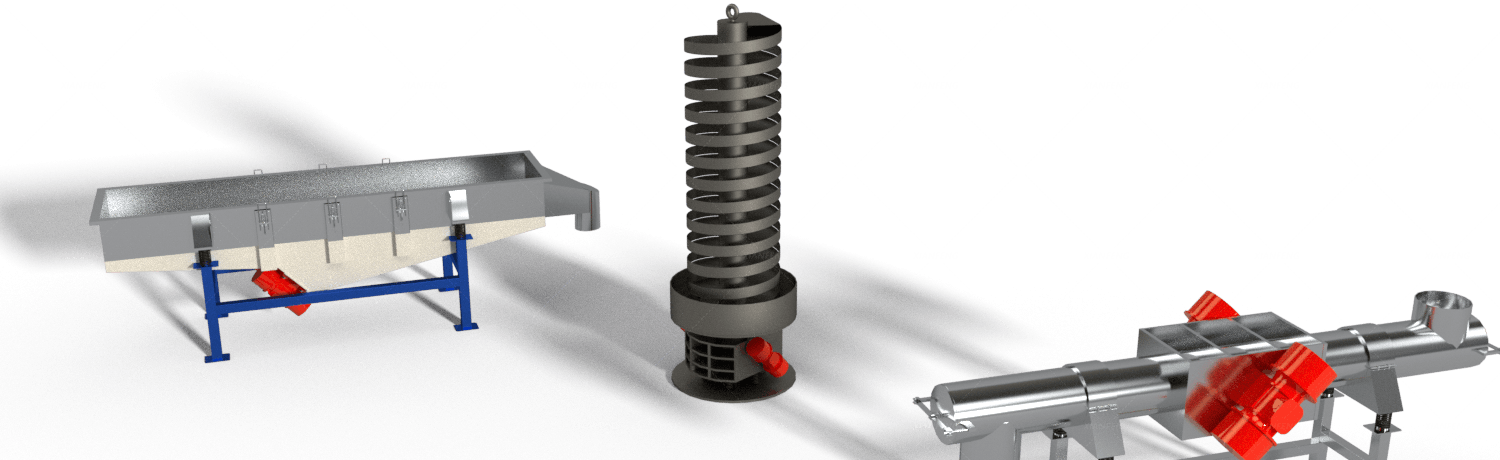

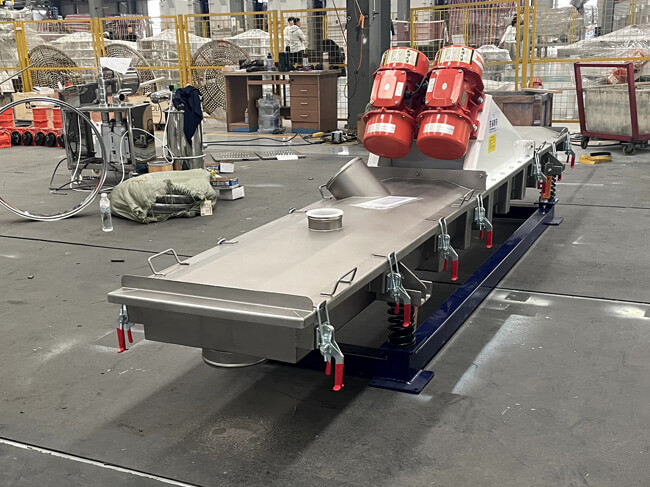

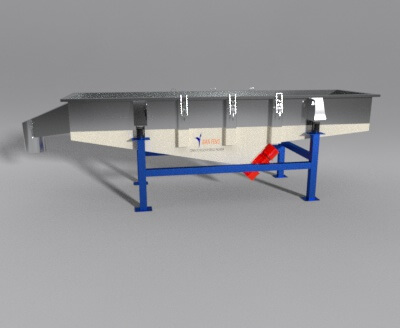

Horizontal vibrating conveyor

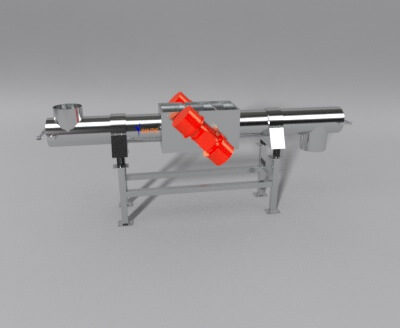

Tubular vibrating feeder

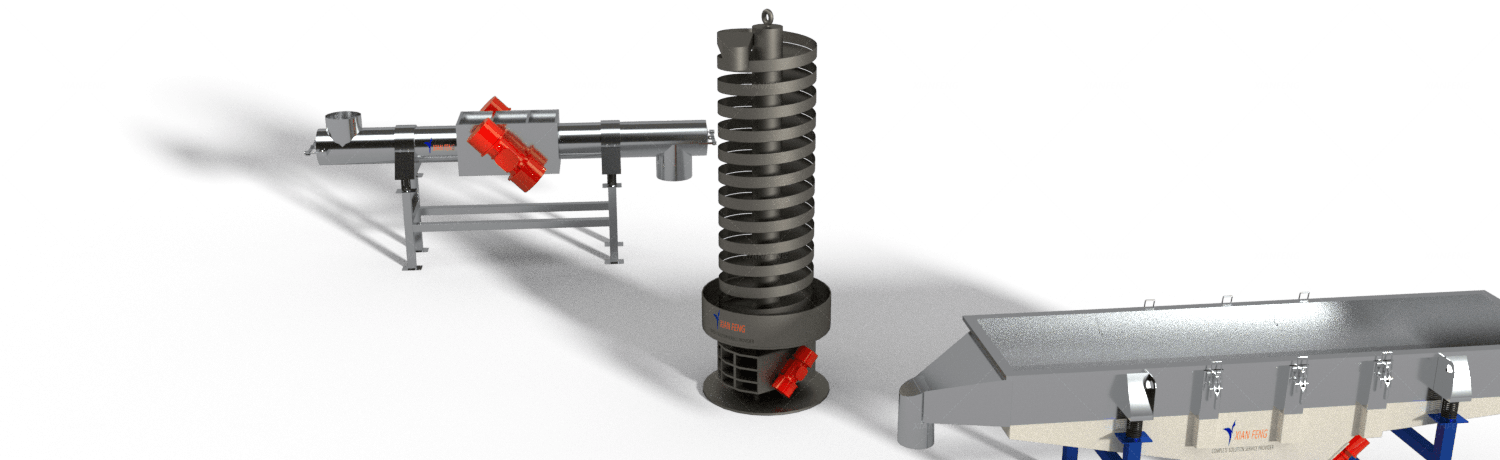

Vibrating screw conveyor
Vibrating screw conveyor
| Type | XFTS-400 | XFTS-600 | XFTS-800 | XFTS-1000 | XFTS-1200 |
| conveying capacitym³/h | ≤1 | ≤3 | ≤4 | ≤5.5 | ≤6.5 |
| Conveying distance and height m m | customize | customize | customize | customize | customize |
| power 2 x ( k w ) | 0.37-0.75 | 0.75-1.1 | 0.75-1.5 | 1.1-4.2 | 1.5-5.5 |
| double amplitudemm | 6-9 | 6-9 | 6-9 | 6-9 | 6-9 |
It can be fully customized. The conveying height and length can be adjusted according to the user's on-site space requirements, meeting the production capacity needs of different production lines. When customizing, please provide the material name, particle size, moisture content, required conveying height, and hourly conveying capacity. We will match the optimal parameters and provide a customized solution.

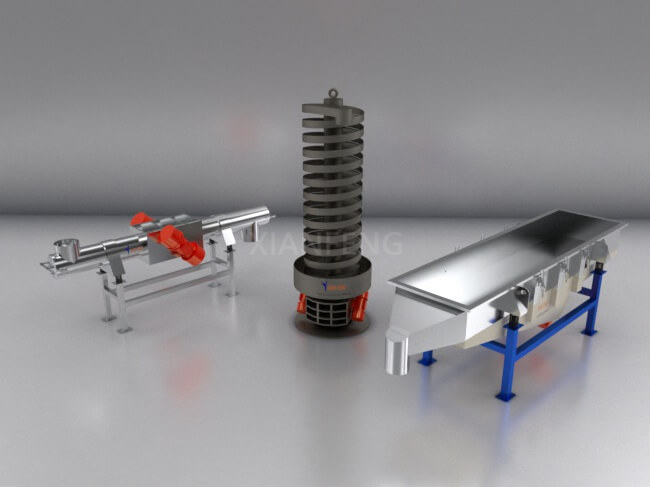

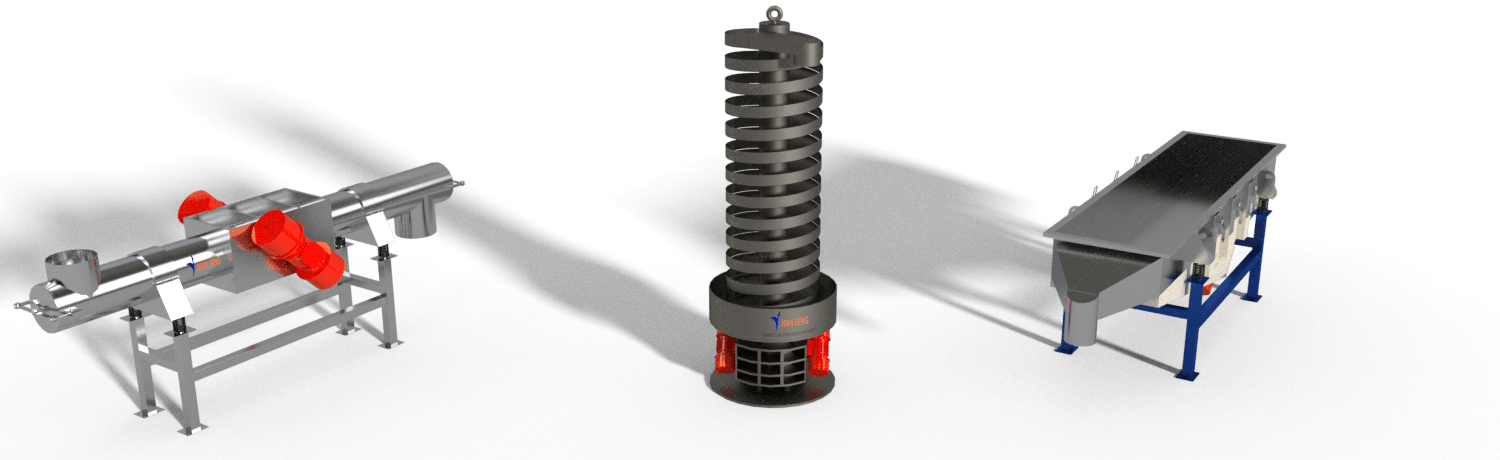

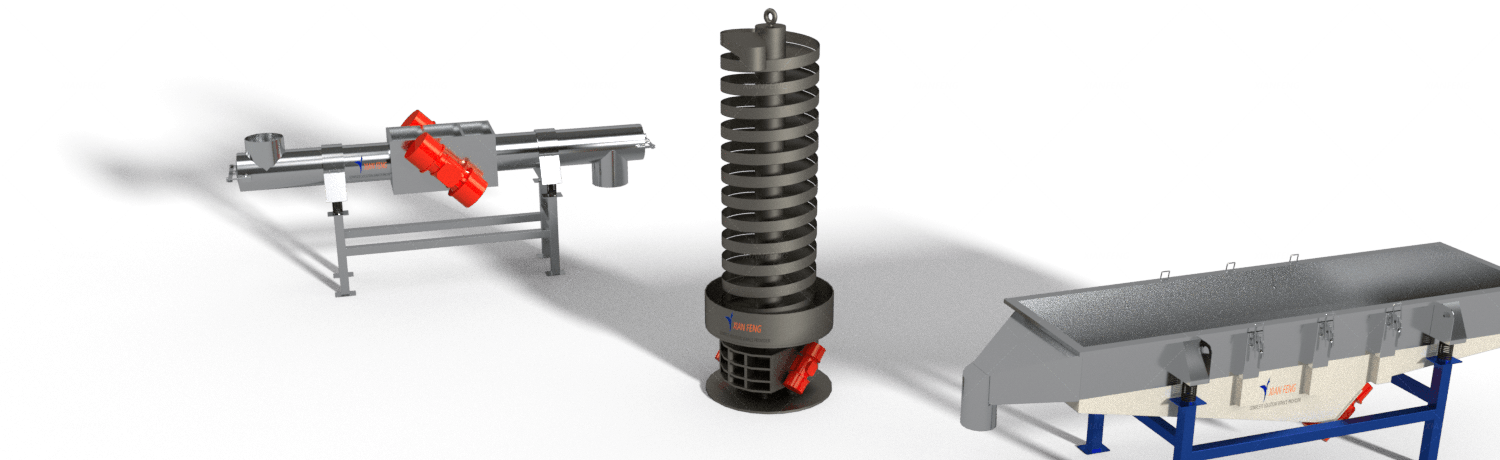

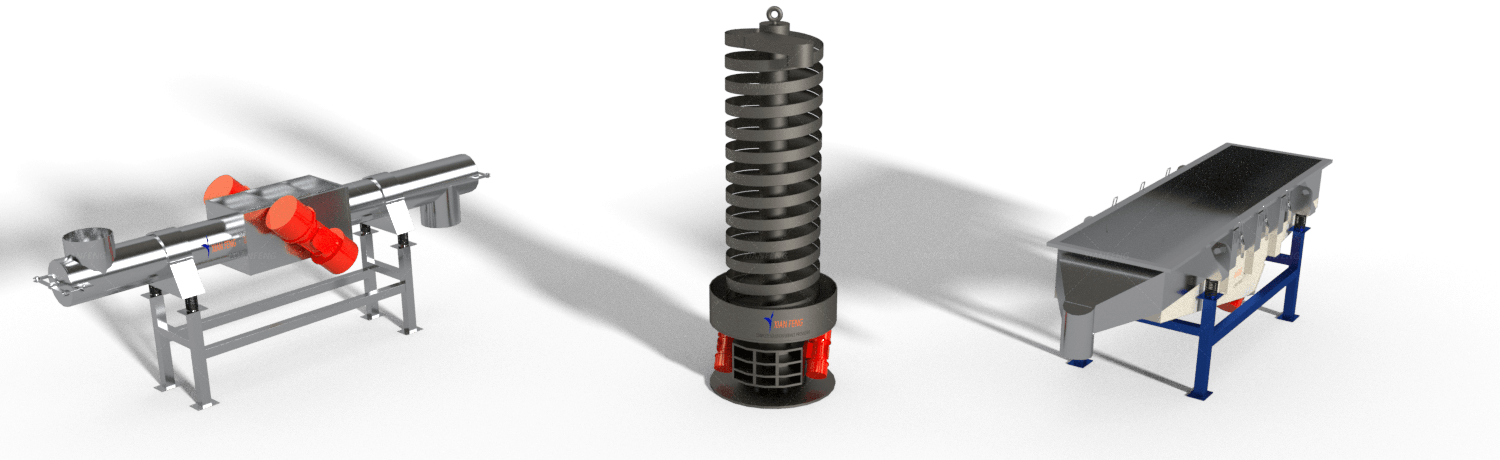

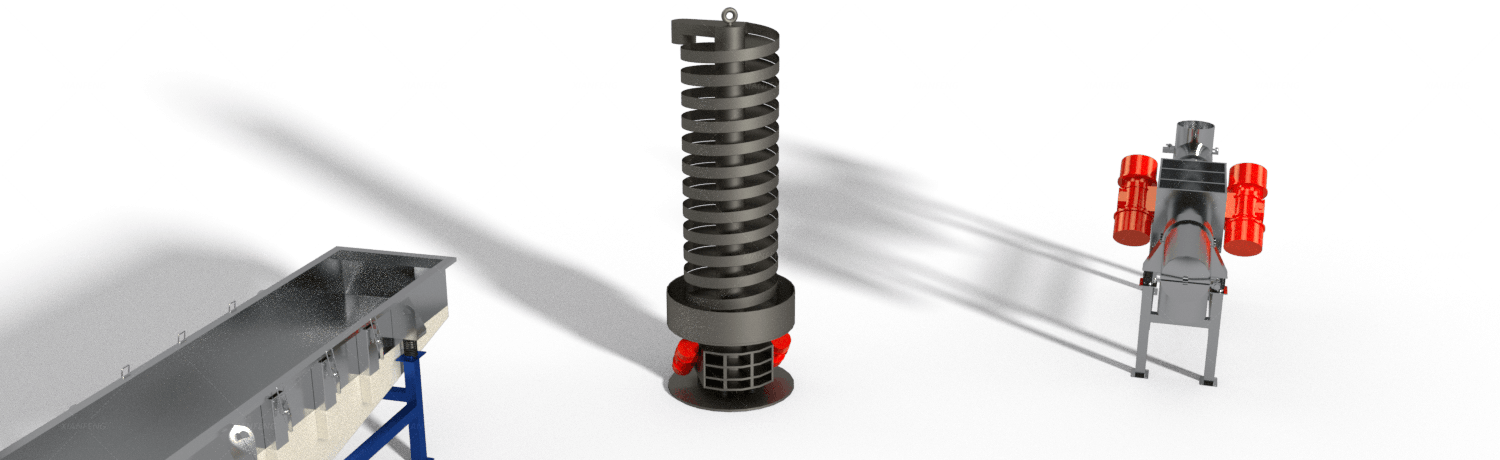

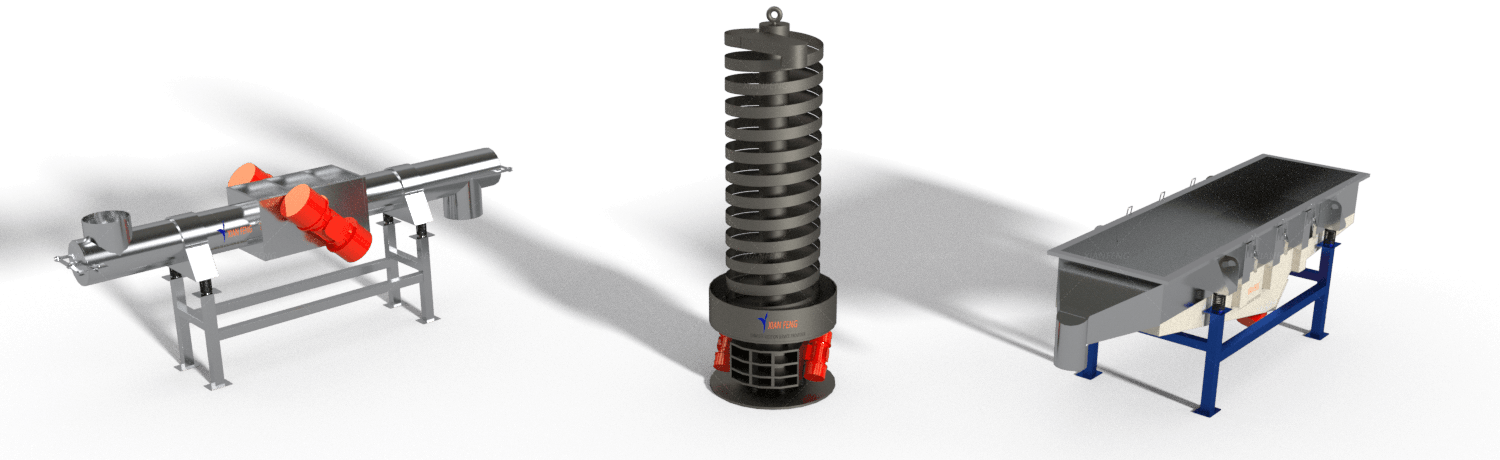

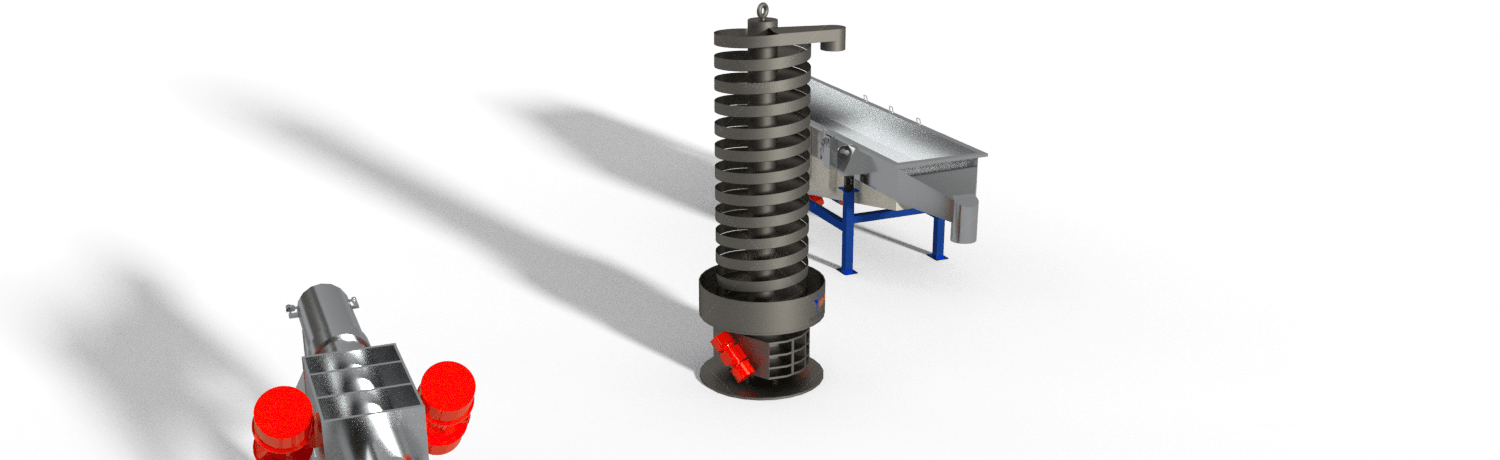

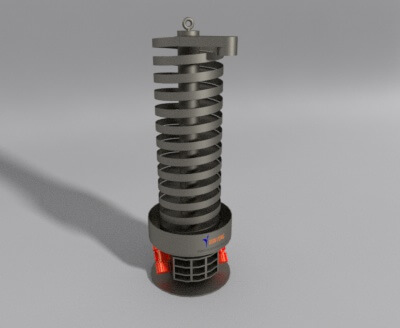

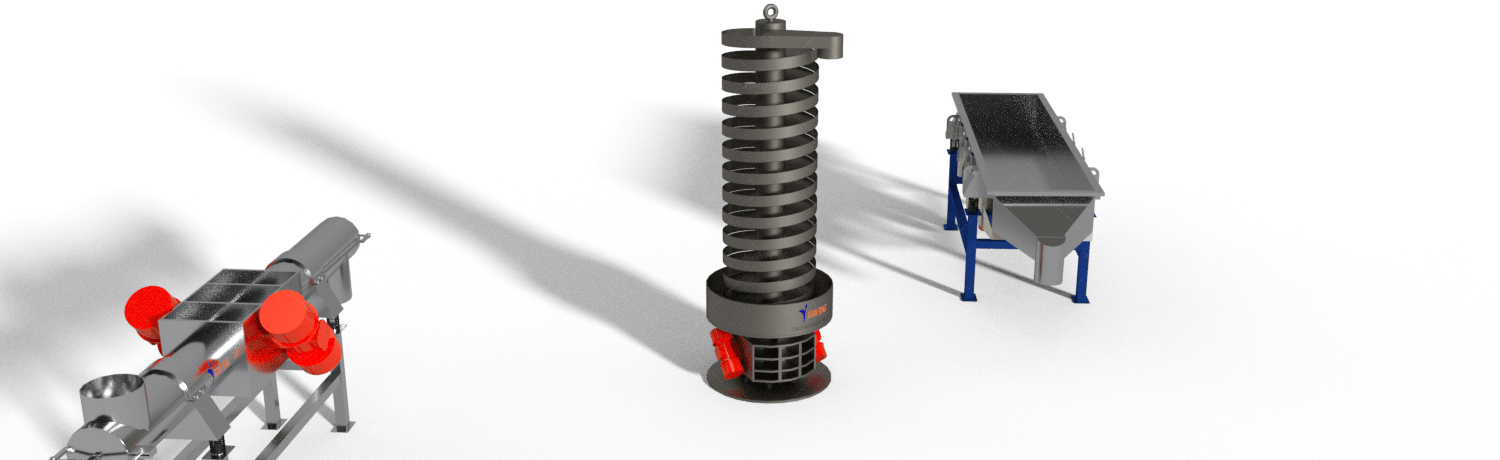

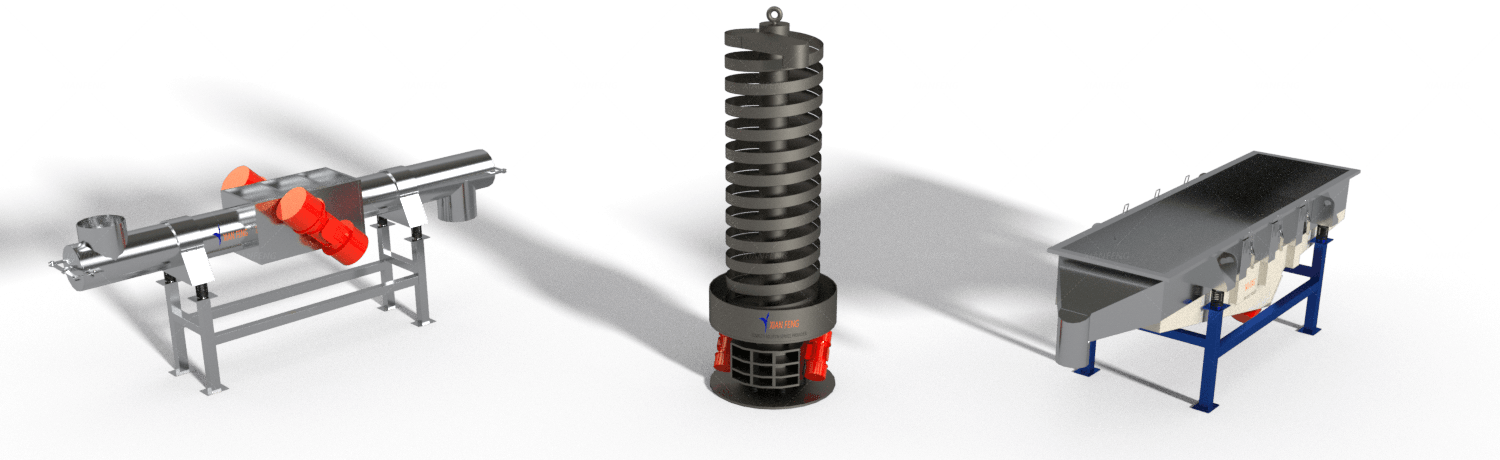

· Spiral vertical vibrating feeder: primarily designed for vertical lifting and feeding, featuring vibration drive + spiral groove body, without rotating spiral shaft · Tubular vibrating feeder: enclosed circular tube structure, horizontal/small inclination conveying, fully sealed and dust-free · Horizontal vibrating feeder: mainly featuring an open-type trough, horizontal/slightly inclined angle conveying, and large flow rate, making it a versatile model
For dry, non-sticky powder materials or small particles that require vertical lifting and have limited horizontal installation space, a spiral vertical vibrating conveyor is recommended. For horizontal or low-angle conveying, and when dealing with materials prone to dust, toxic corrosion, or having hygiene/explosion-proof requirements, a fully enclosed tubular vibrating conveyor is preferred. For horizontal or slightly inclined conveying of large-flow ordinary bulk materials, without strict environmental sealing requirements and a limited budget, an open horizontal vibrating conveyor is a good choice. It is not recommended to use vibrating conveyors for materials with high viscosity and severe caking. If the working conditions are uncertain, material samples can be provided for feeding tests to verify the selection plan.
