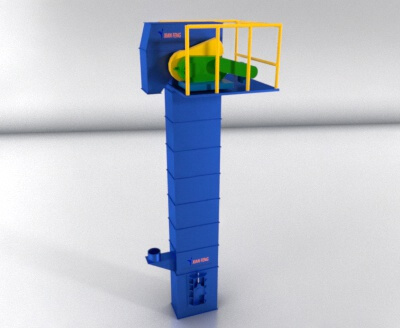

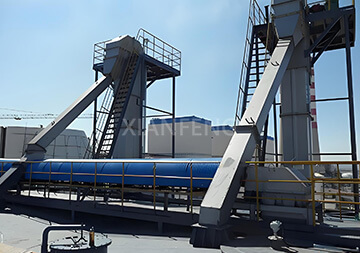

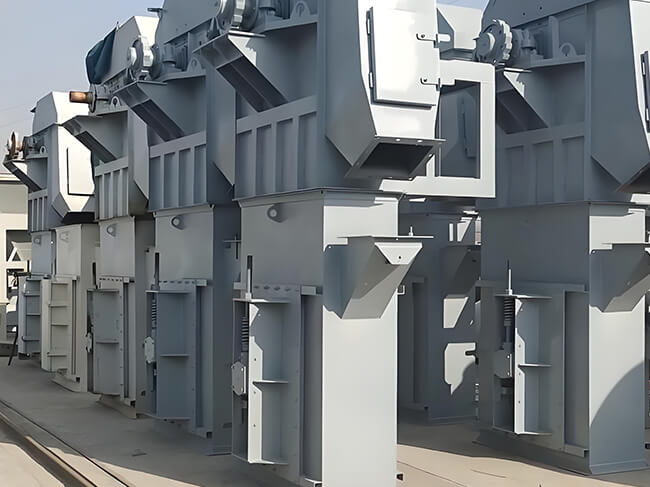

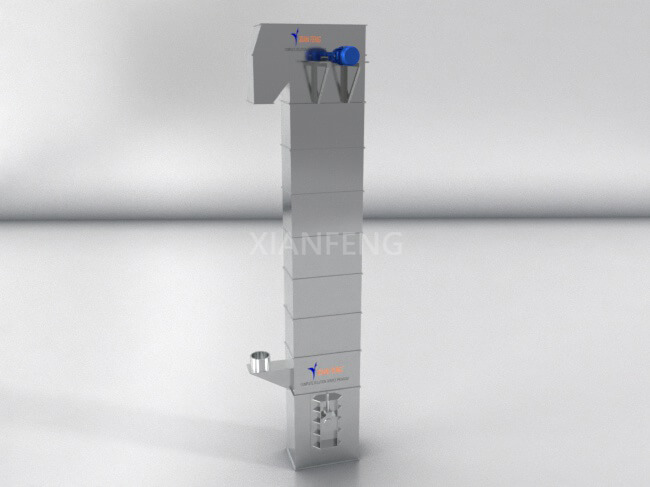

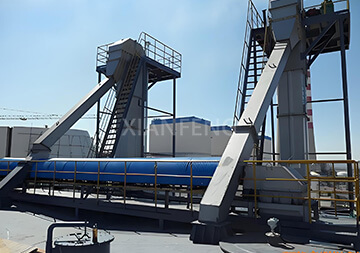

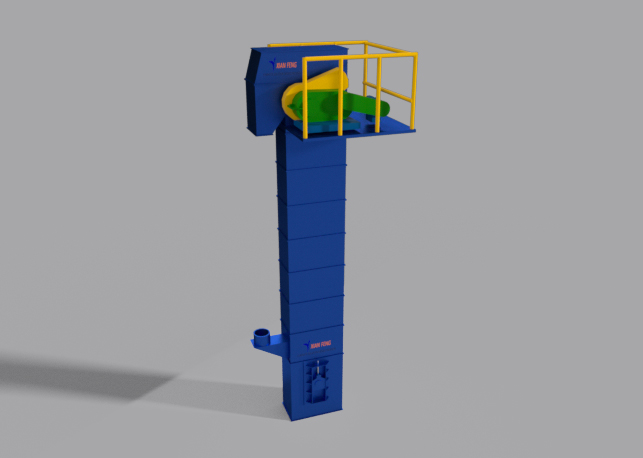

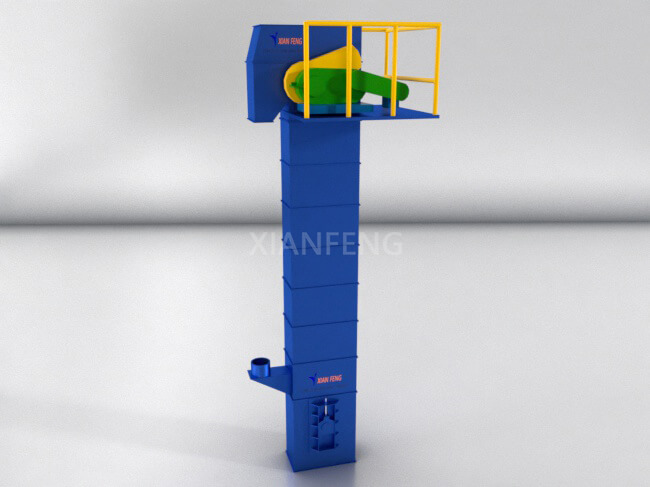

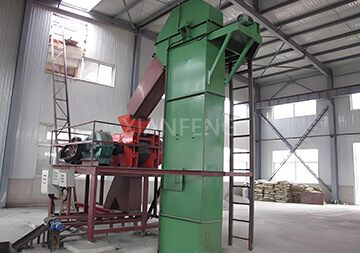

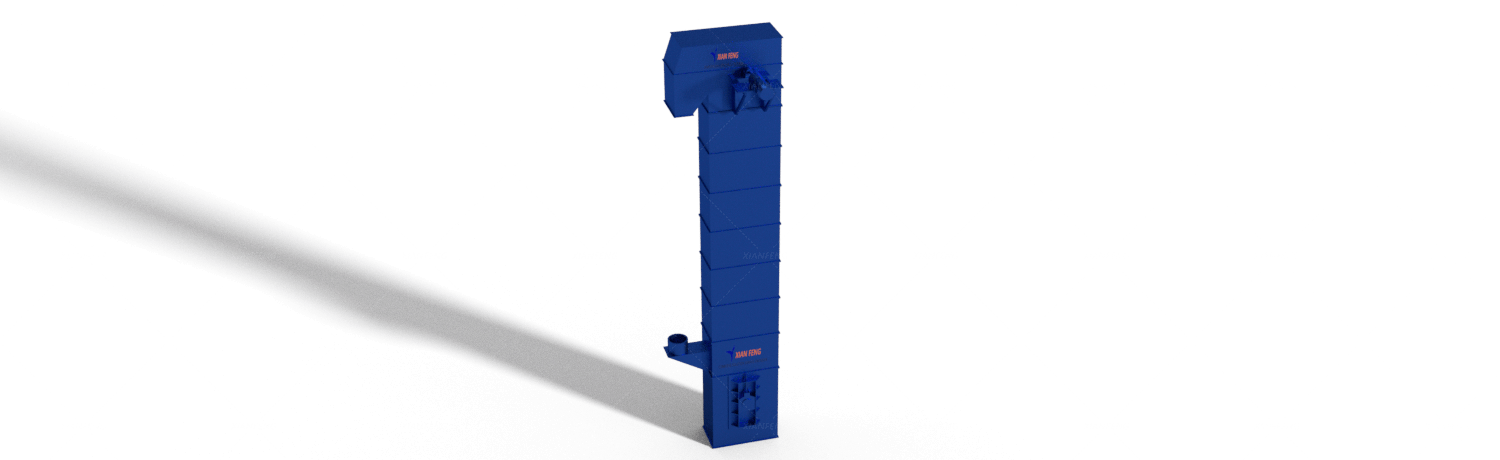

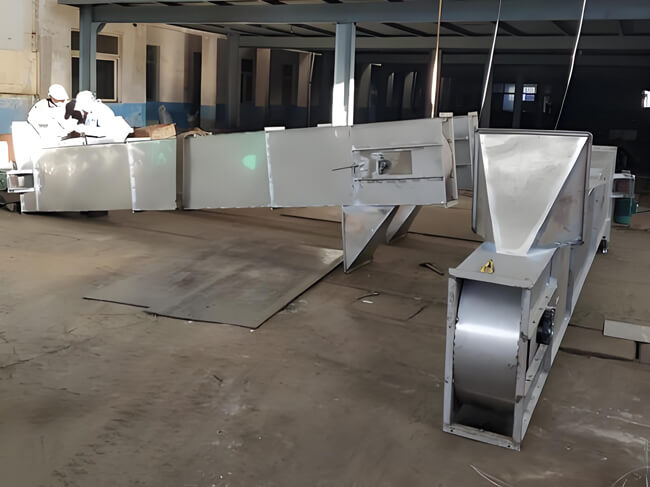

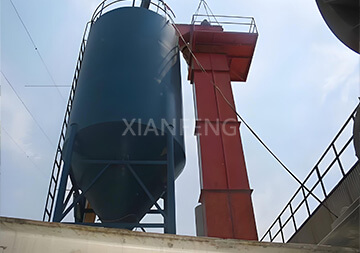

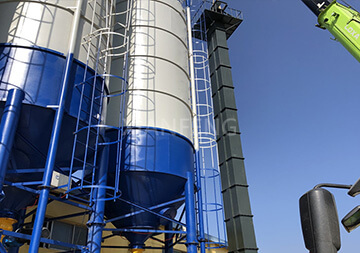

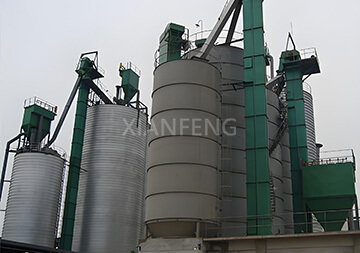

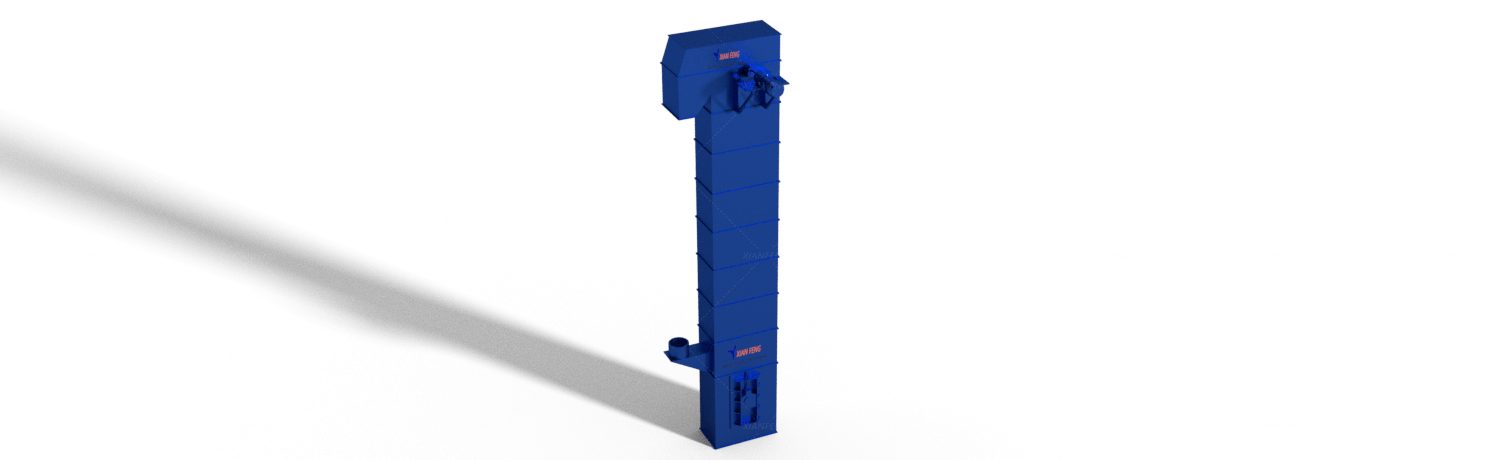

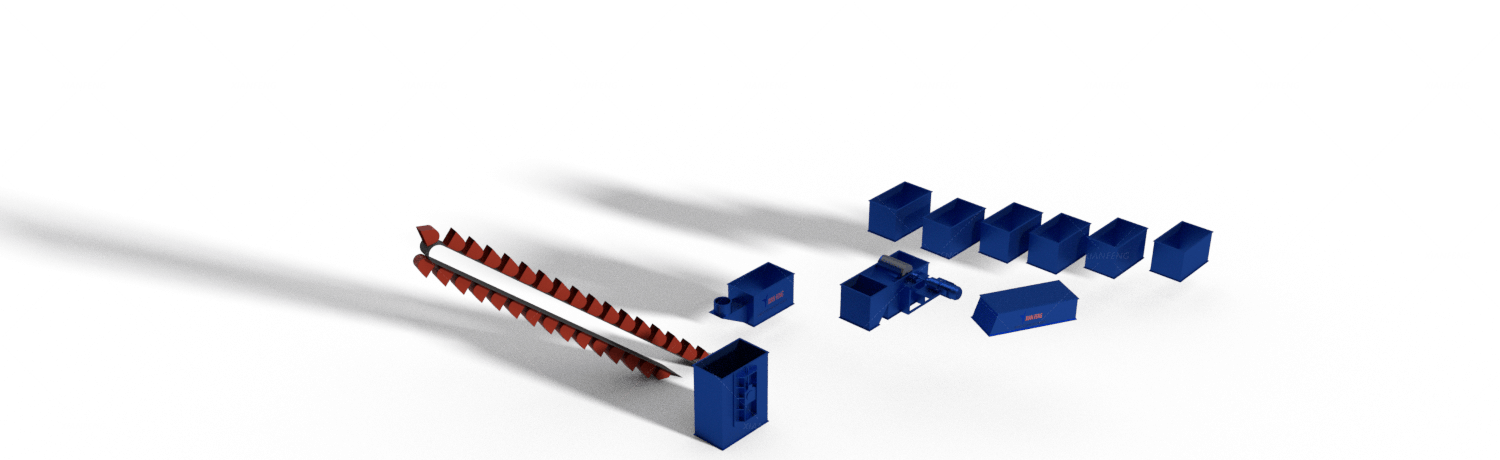

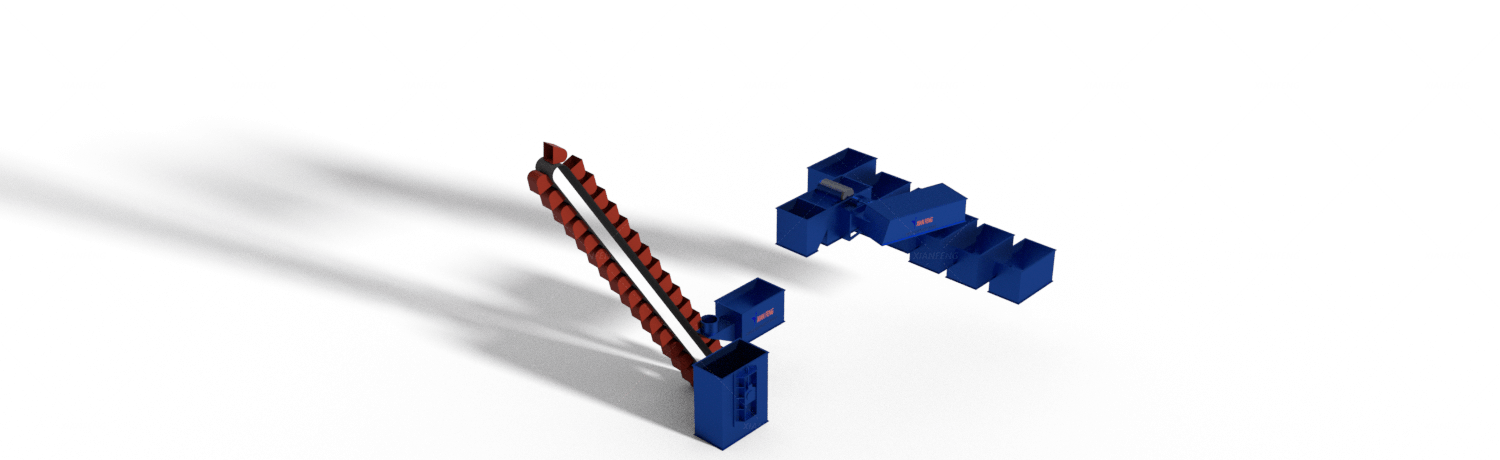

Bucket elevator is an efficient vertical conveying equipment designed for continuous lifting operations of granular, powdery, and small block materials. It is widely used in various industries such as mining, building materials, chemical, grain, feed, metallurgy, etc. The equipment pulls the hopper through a chain or belt to smoothly transport materials from low to high, achieving automated transportation and storage connection of materials, greatly improving production efficiency, and reducing labor costs. It is an indispensable core conveying equipment in modern production lines.

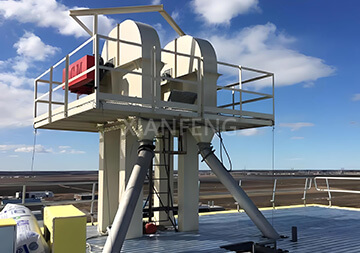

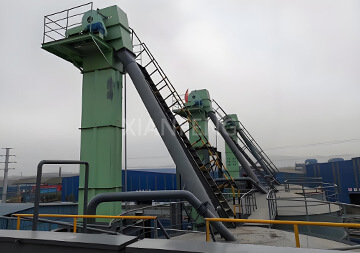

Coal, iron ore, copper ore, limestone, sand and gravel, tailings, slag, metallurgical powder, coking coal, coke, slag micro-powder, etc.

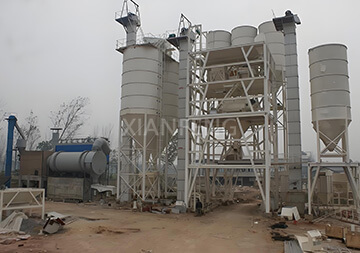

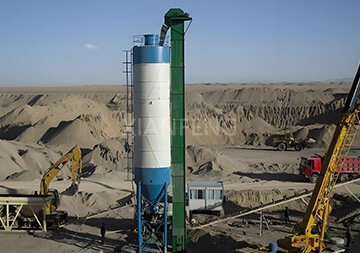

Cement clinker, sand and gravel aggregates, lightweight aggregate, brick and tile raw materials, refractory materials particles, Cement powder, lime, gypsum, fly ash, putty powder, etc
Urea, compound fertilizers, phosphate fertilizers, potash fertilizers, chemical raw material powders, plastic pellets, rubber pellets, soda ash, baking soda, pigment powder, etc.
Wheat, corn, rice, soybeans, sorghum, miscellaneous grains, feed pellets, bran, soybean meal, rapeseed, cottonseed, flour, starch, white sugar, table salt, monosodium glutamate, coffee beans, tea leaves, nuts, expanded food pellets, etc.
Medicinal powders, traditional Chinese medicine granules, Western medicine powders, capsule raw materials, pharmaceutical excipients, pharmaceutical intermediates, etc.
furnace ash, wood chips, sawdust, plastic pellets, glass scraps, etc.

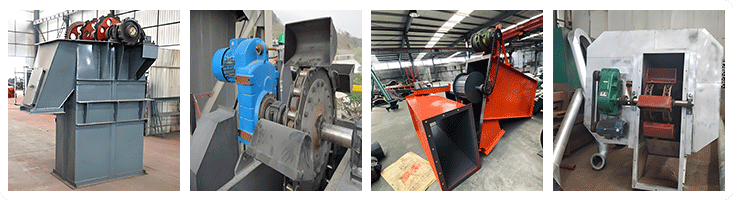

Chain method

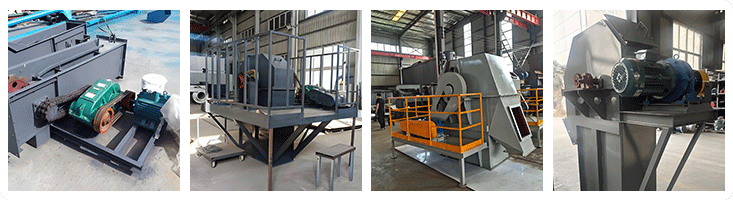

Motor/reducer

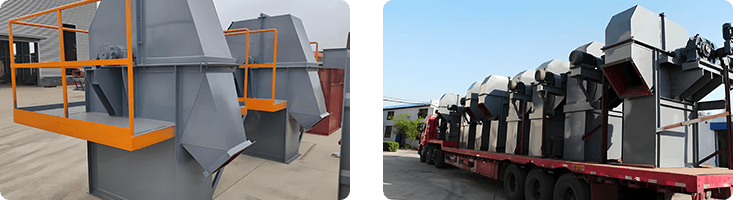

Discharge outlet

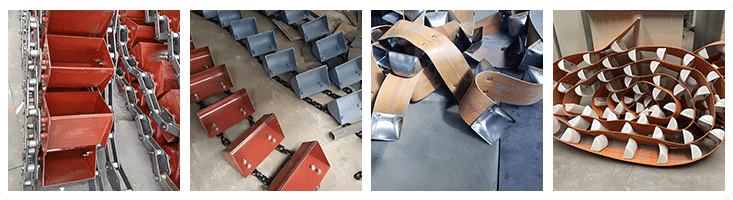

Material of hopper

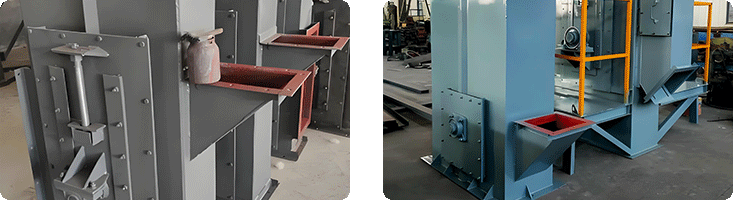

Feed inlet

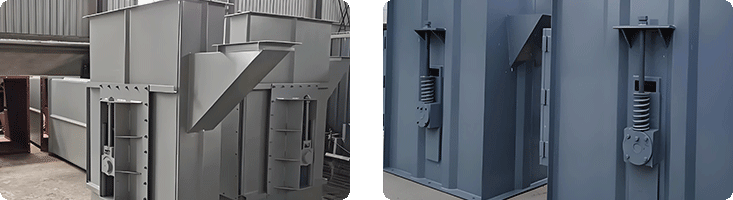

Regulating device

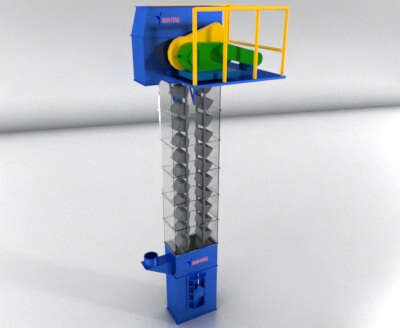

Chain type: precise transmission without slipping, gear meshing transmission, direct power, no loss of rotation or chain jumping, high conveying efficiency

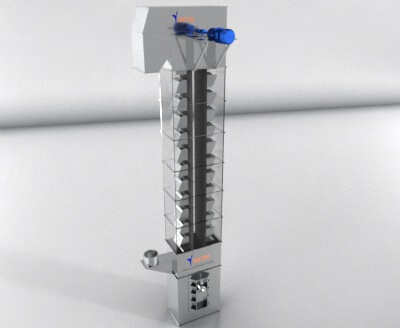

Belt type: The belt has a high degree of fit, runs vertically without shaking or deviation, and the feeding is smoother
Adopting high-efficiency and energy-saving dedicated motors, it has strong power, can operate continuously for a long time, and has a low failure rate.
Equipped with a hard tooth high-precision reducer, it has high torque and transmission efficiency.
Choose high-strength wear-resistant special belts for precise transmission, no slipping, and no deviation.
The hopper adopts fish scale welding technology, finely polished without burrs, and sealed without leakage.
The hopper can be equipped with dust covers as needed to prevent dust from flying.
Customizable warehouse wall vibrators can assist in cutting and maintaining smooth feeding.
Link type: Plate chain, Chain type, Belt type

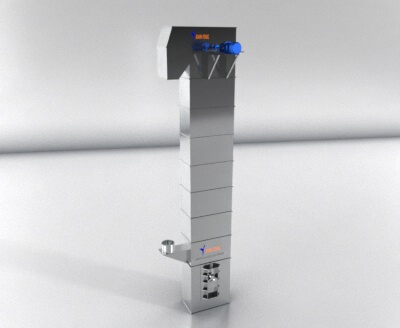

Material of hopper: plastic, carbon steel, 304/316L stainless steel.
Inlet: Equipped with anti backflow and material blocking design, it prevents material backflow and spillage, reduces losses, and improves production capacity utilization.
Customizable size, opening direction and flange, easy to connect with various feeding equipment, flexible and universal installation.
Tighten the belt/chain device. Effectively prevent malfunctions and extend service life.
No need for complex tools, easy fine-tuning, short downtime, and low labor costs

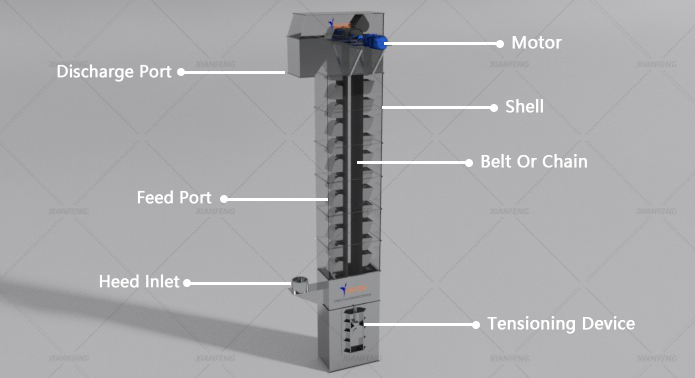

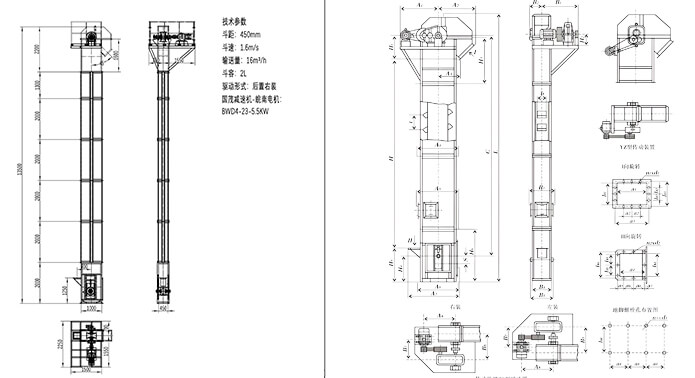

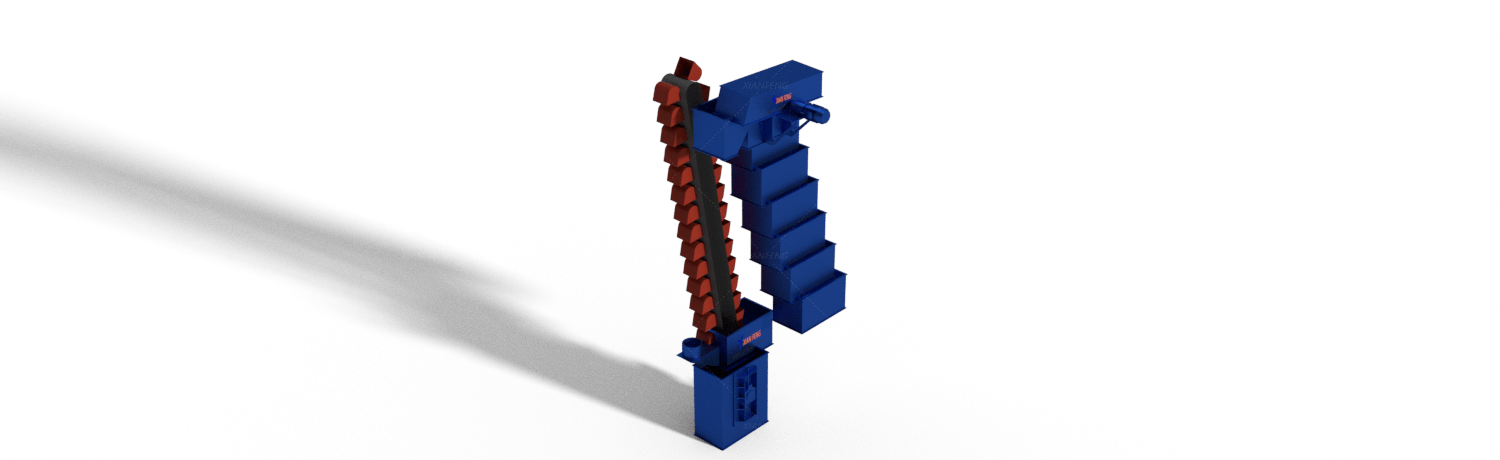

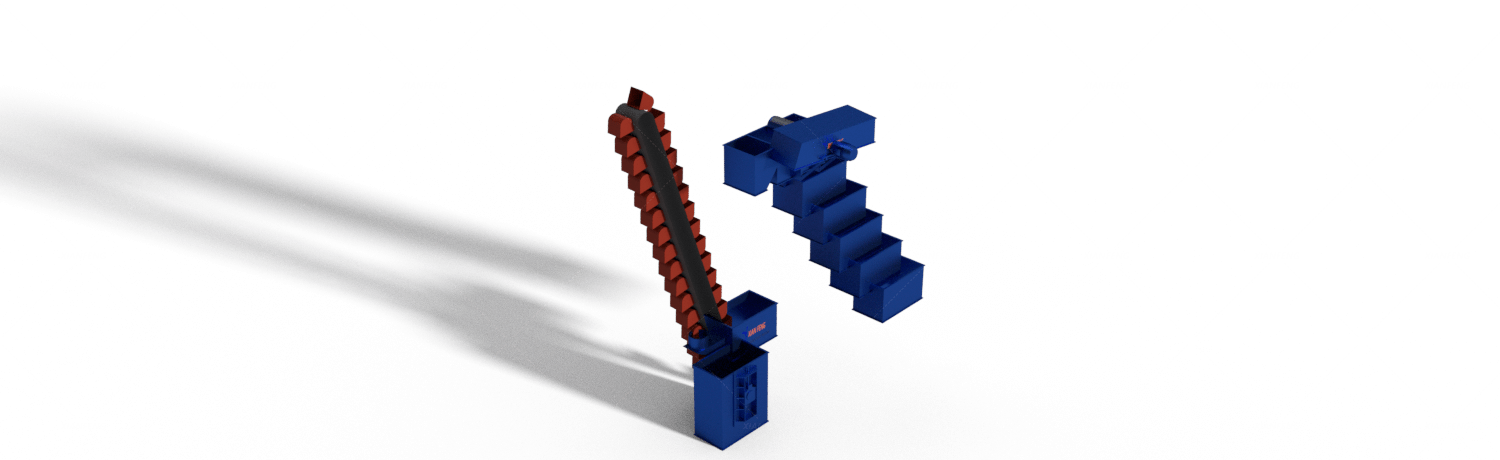

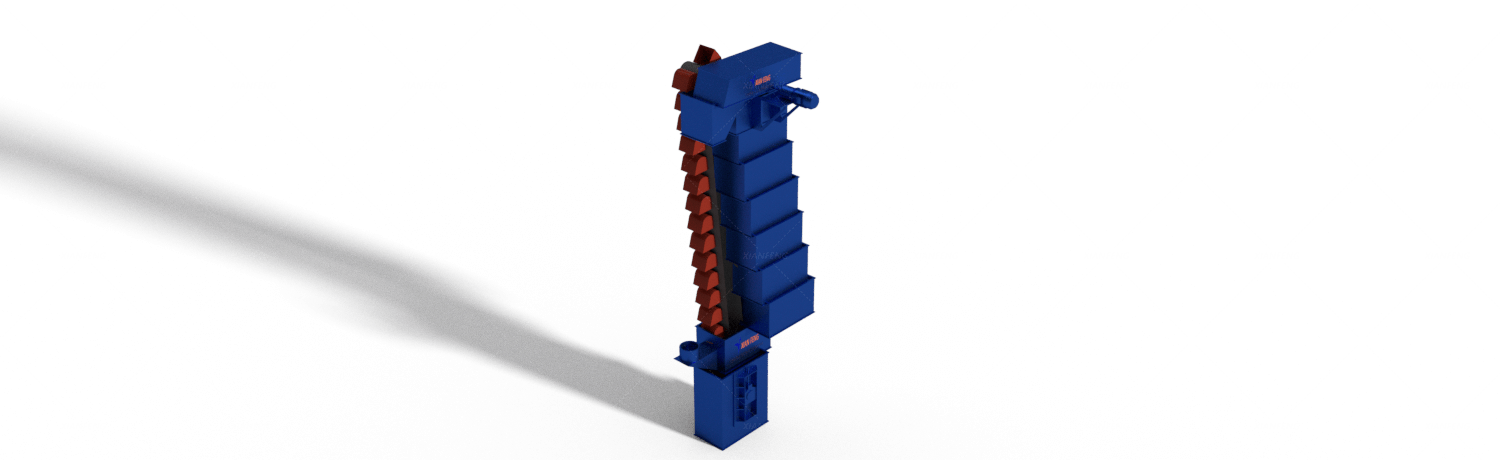

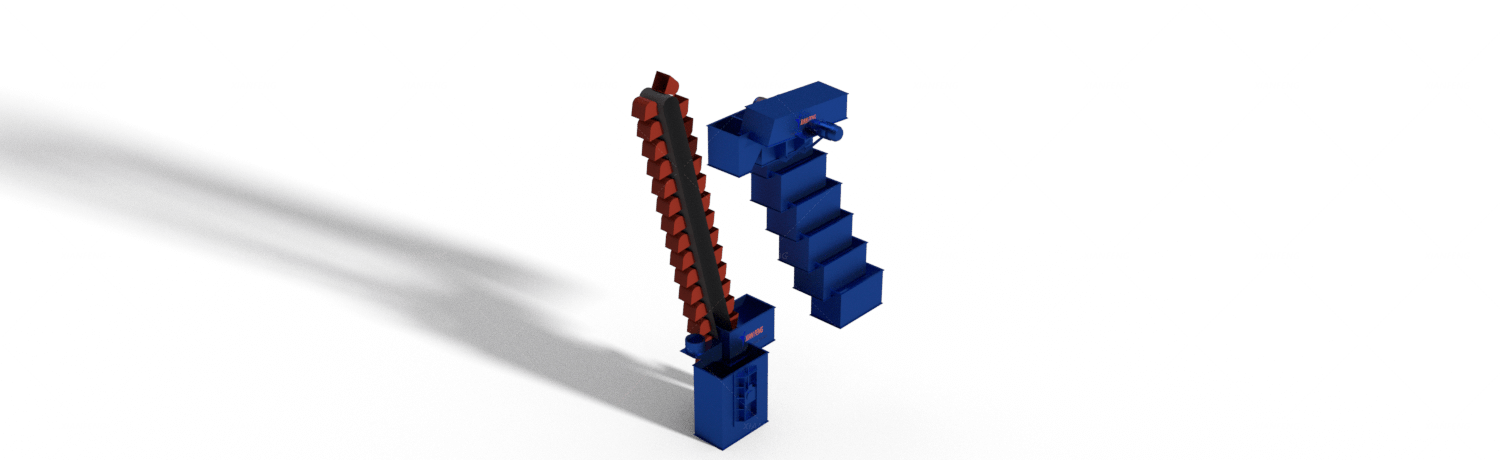

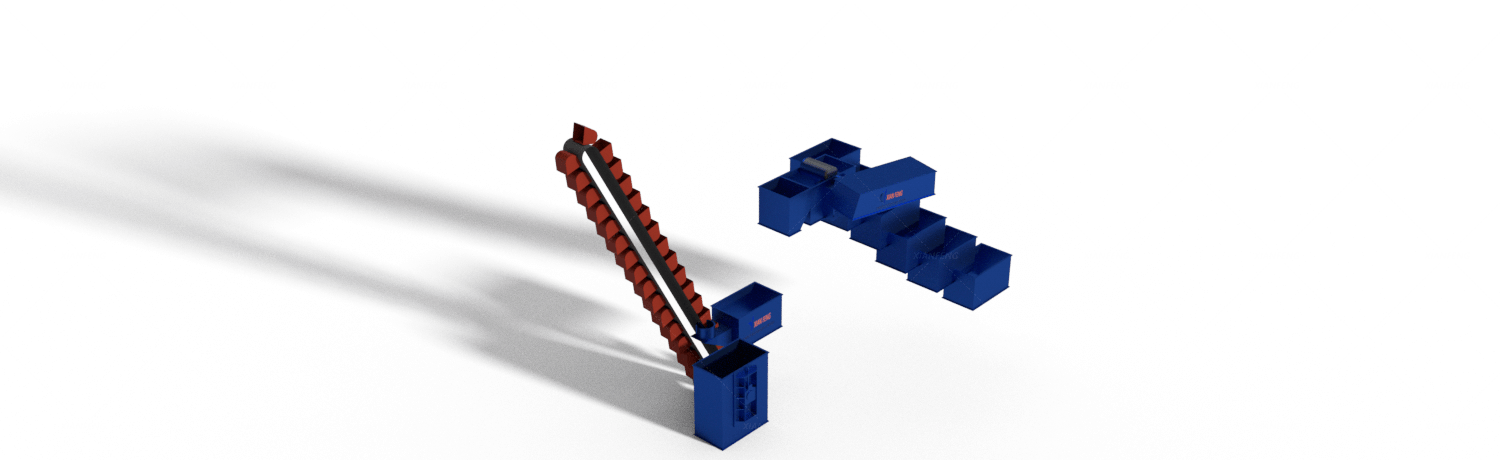

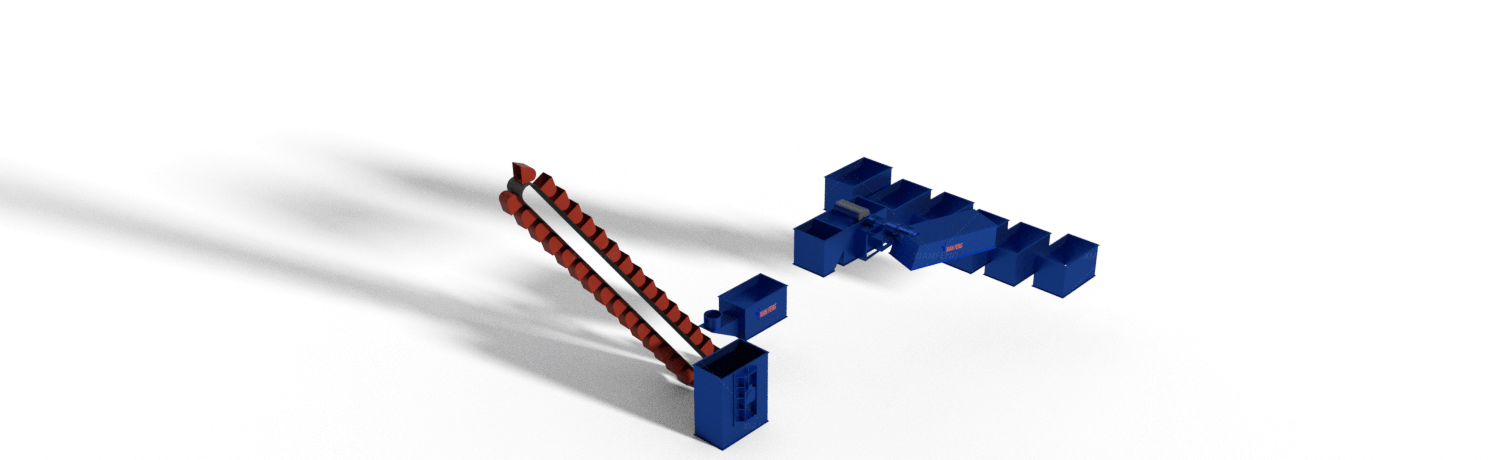

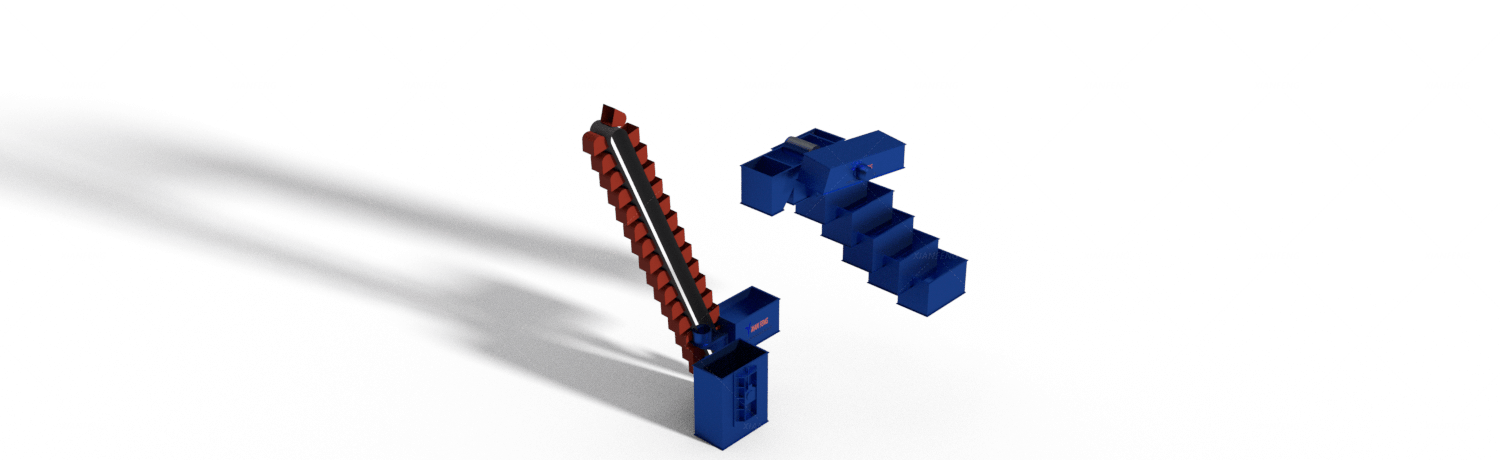

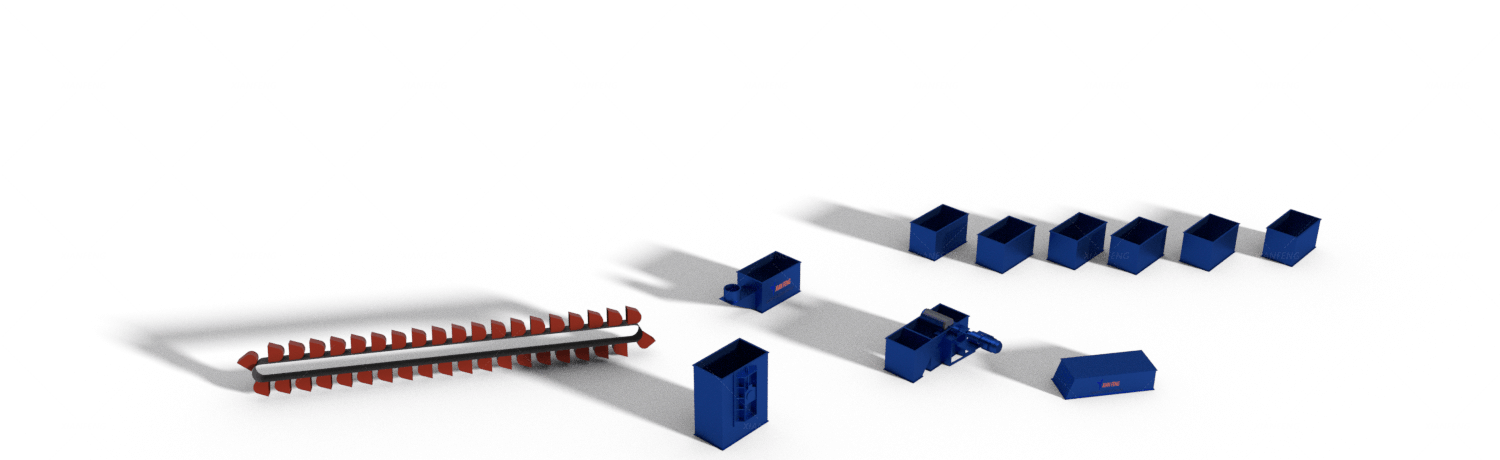

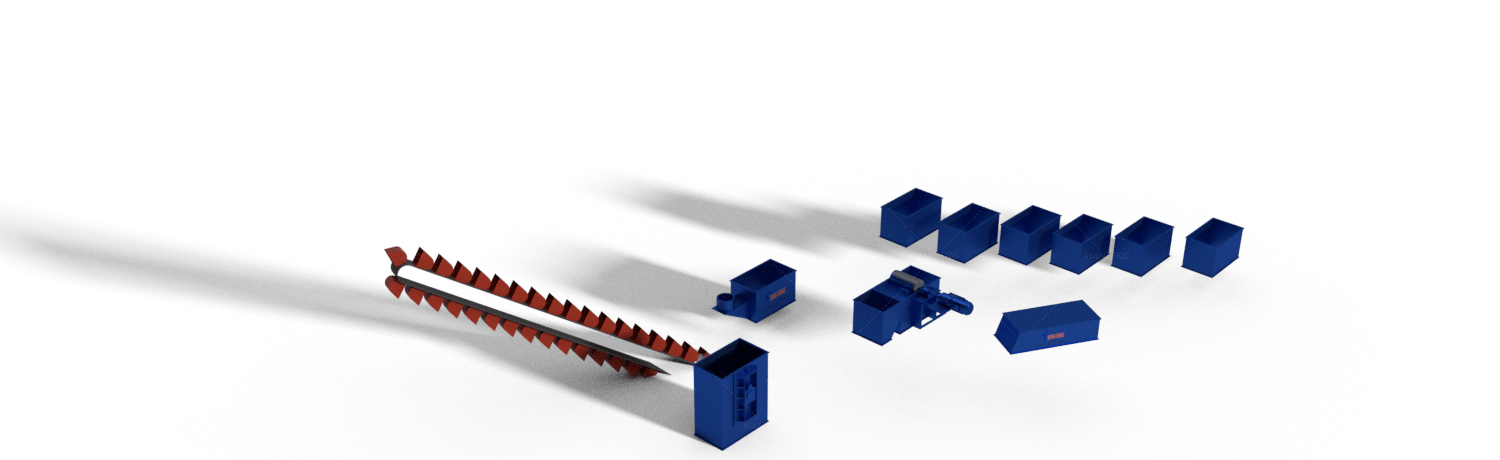

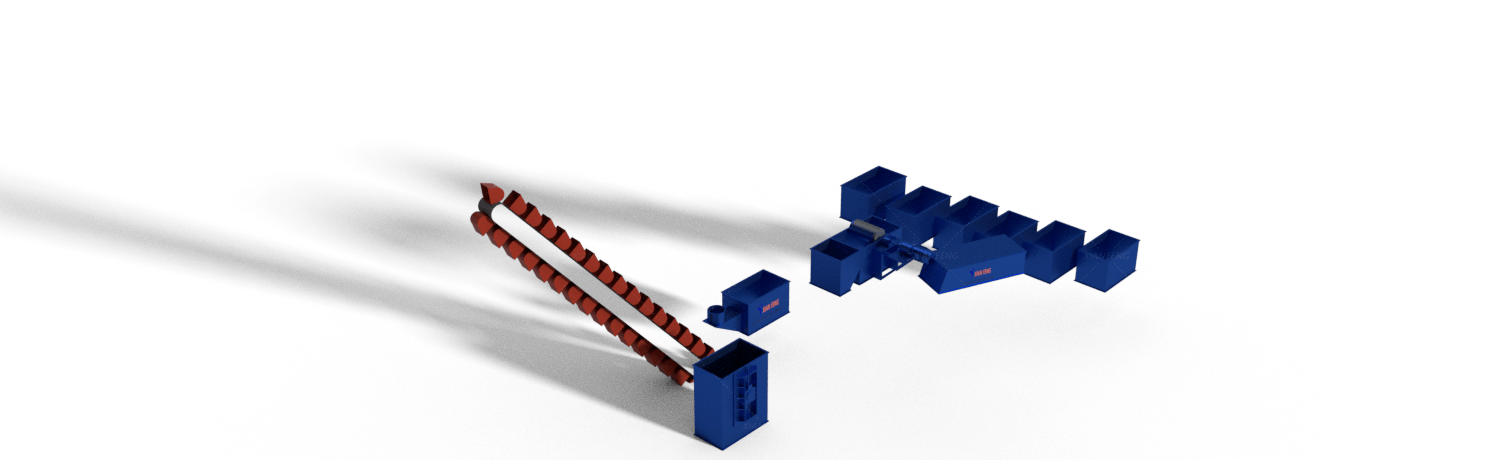

The driving device outputs power to the head spindle through a motor, reducer, coupling, and large and small chain wheels, driving the chain or tape to run at a constant speed. The hopper fixed on the chain or tape scoops up the material from the tail feeding port, lifts it to the head, and unloads the material from the discharge port to complete the material lifting process.

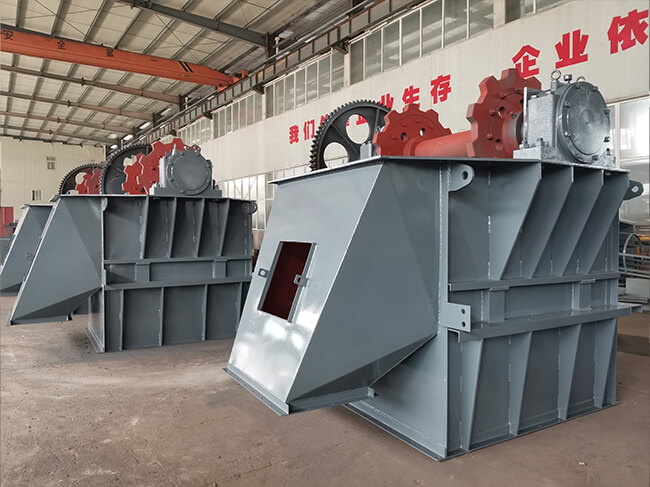

including shell, head shaft, head wheel, and bearings, ensuring geometric accuracy, strength, and operational accuracy.
provides power for the bucket elevator, and its structure and layout need to meet power and transmission requirements, while considering equipment stability and maintenance convenience.
supports most of the weight of the entire equipment, with high requirements for accuracy and rigidity, ensuring installation accuracy and interchangeability. Tail: Support equipment to ensure constant tension of chains or tapes, equipped with observation doors and maintenance installation doors, and safety protection devices such as level gauges can be installed as needed.

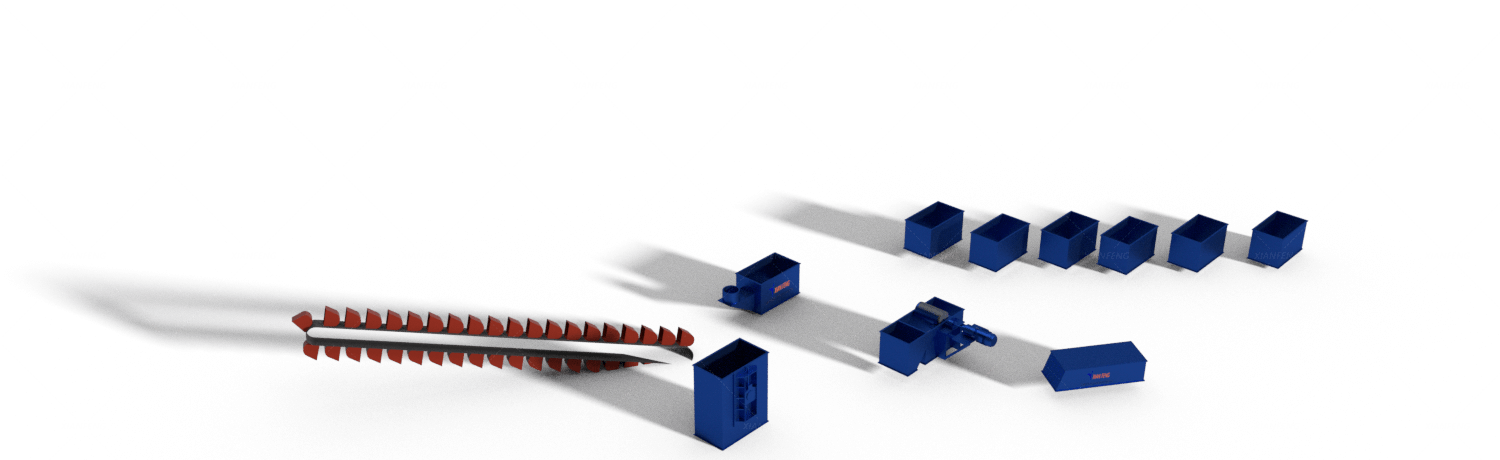

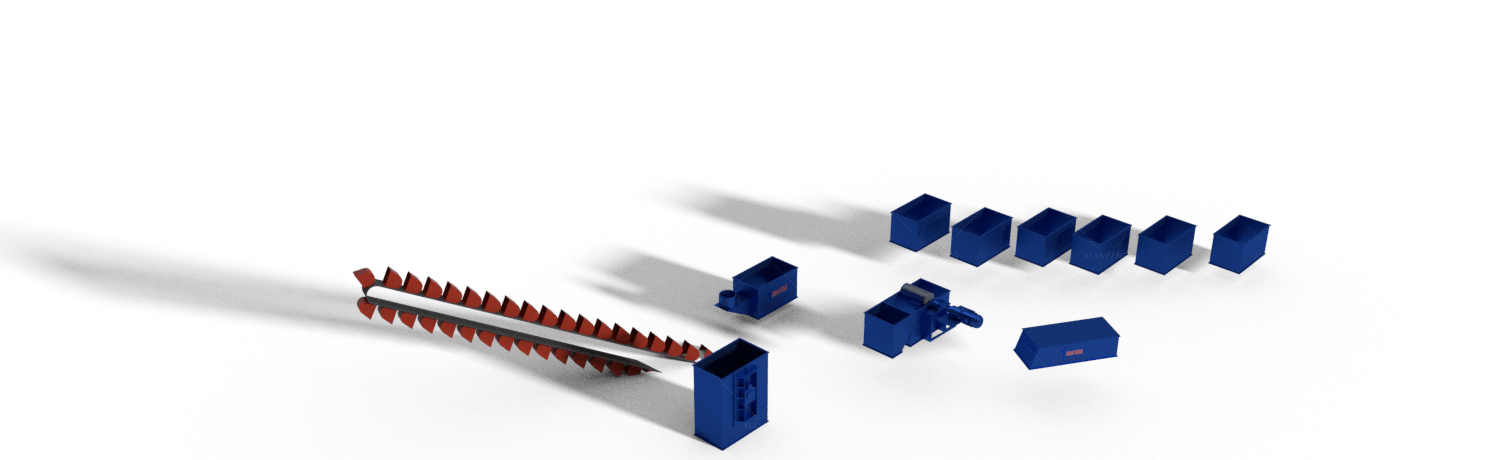

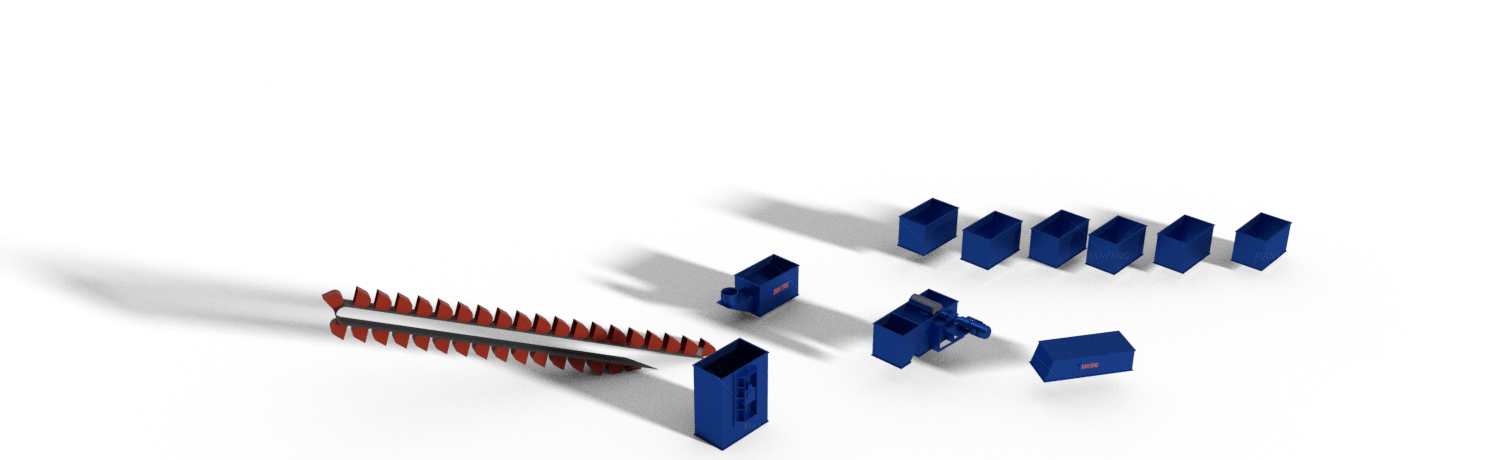

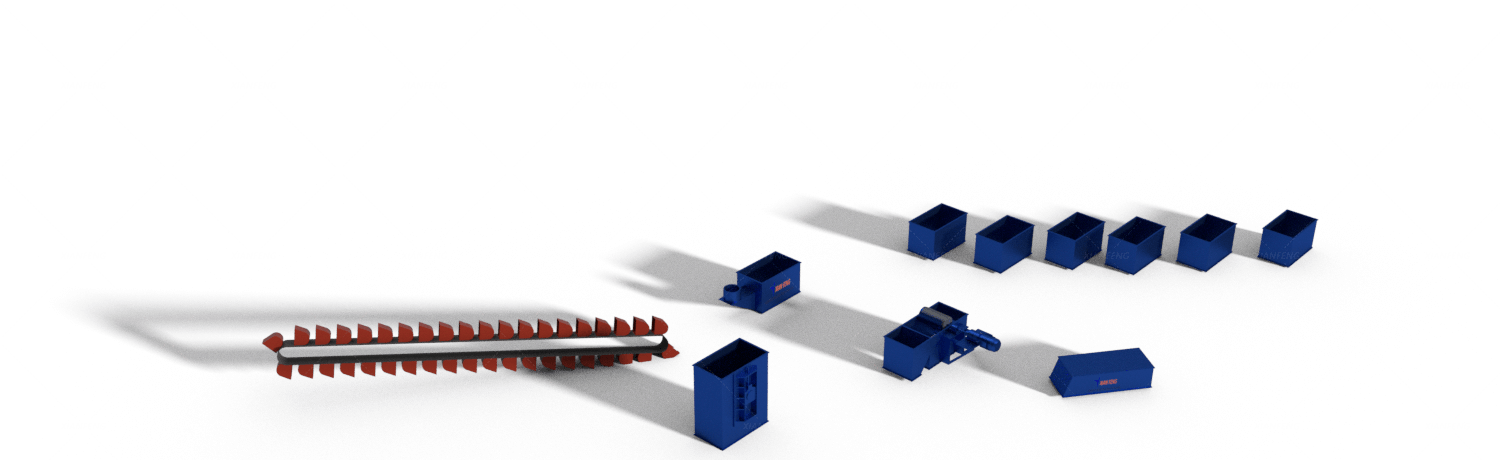

including chains, tapes, hoppers, and connectors, are key parts of bucket elevators, and their quality directly affects the service life of the equipment and the effectiveness of material lifting.
| Model | Size of material(mm) | Speed of Bucket (m/s) | Bucket Capacity (L) | Capacity (m3/h) |
| TD-630 | 50-195 | 0.5 | 2.5-501.8 | 15-800 |
| TD-500 | 50-195 | 2.5-501.8 | 15-800 | |
| TD-400 | 50-195 | 2.5-501.8 | 15-800 | |
| TD-315 | 50-195 | 2.5-501.8 | 15-800 | |
| TD-250 | 50-195 | 2.5-501.8 | 15-800 | |
| TD-160 | 50-195 | 2.5-501.8 | 15-800 | |
| More model can be customized | ||||
Based on the three core parameters of material characteristics (particle size/humidity/wear resistance), conveying capacity, and lifting height, as well as your installation site size and production line automation requirements, our engineers will match you with the best model free of charge and provide personalized customization solutions.
Belt type (TD) is suitable for lightweight/powdery/easily broken materials (such as grain and cement powder), with low operating noise and minimal material residue; Chain type (TH) is suitable for medium particle/medium wear materials (such as sand and gravel, feed particles), with good load-bearing capacity; Plate chain (NE) is a heavy-duty model suitable for large block/high wear/high temperature materials (such as ore and slag), with a long service life and resistance to heavy loads.
It can be customized in all dimensions, including the material of the body/hopper (carbon steel/stainless steel/wear-resistant steel plate), non-standard dimensions of conveying capacity/lifting height, hopper type (deep bucket/shallow bucket/scale bucket), protective structure (explosion-proof/anti-corrosion/fully sealed), control system (ordinary/intelligent/remote control) and supporting accessories.
All bucket elevators come with a 12-month warranty (from the date of equipment delivery). During the warranty period, core components such as the main body, motor, reducer, and transmission system that are not damaged by human factors will be repaired or replaced free of charge; Vulnerable parts such as hoppers and gaskets are not covered by the free warranty and can be supplied at a discounted price.
