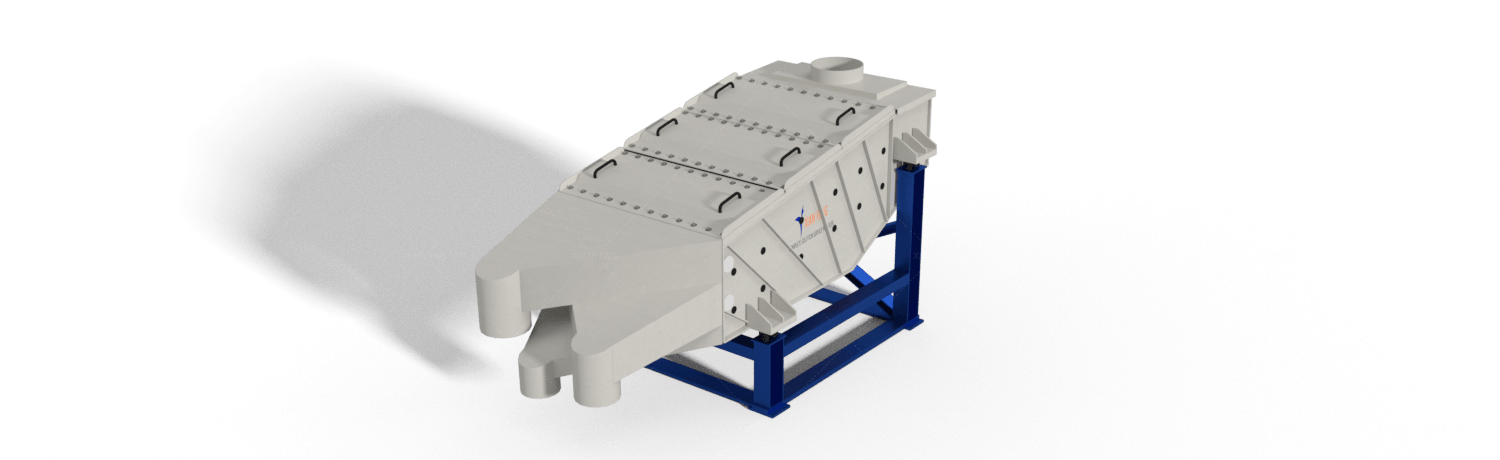

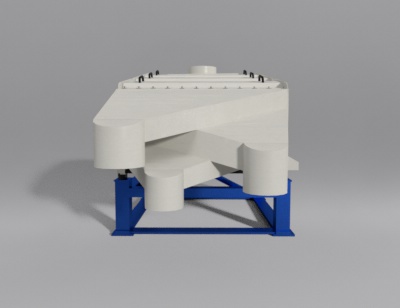

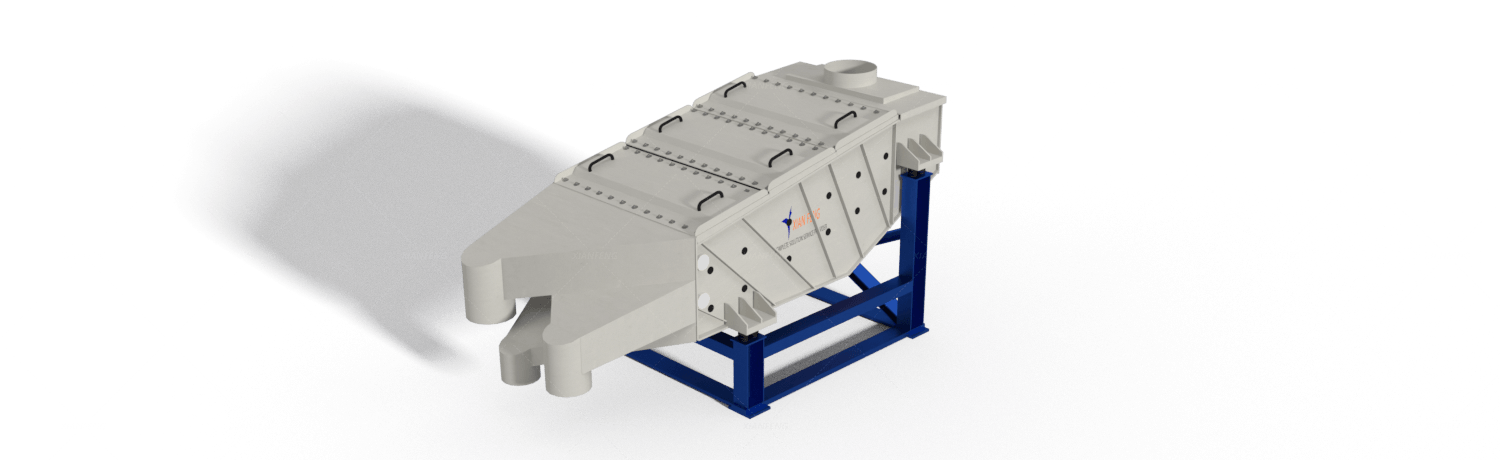

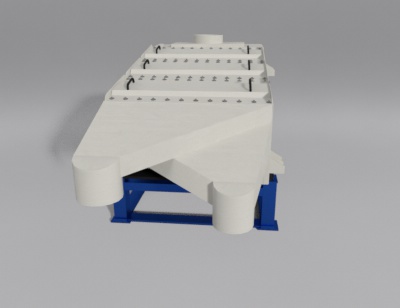

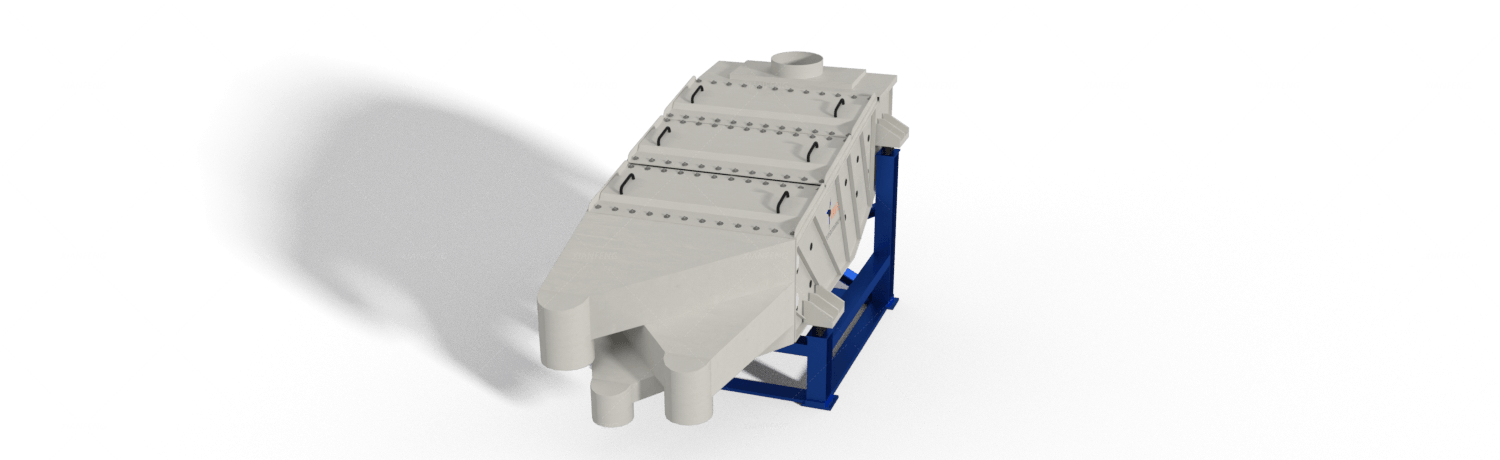

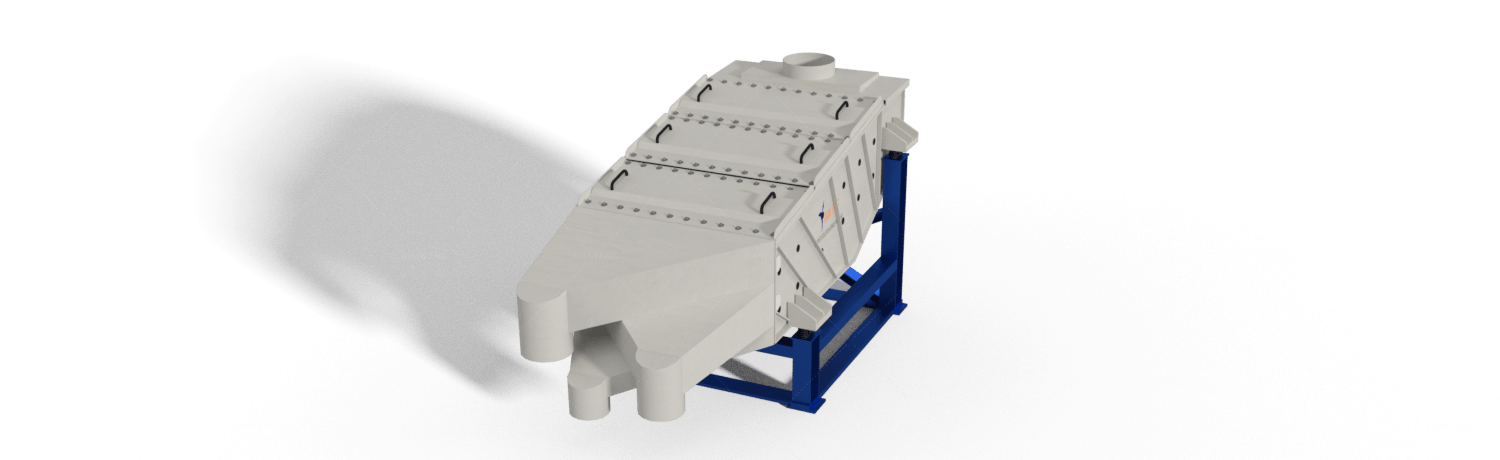

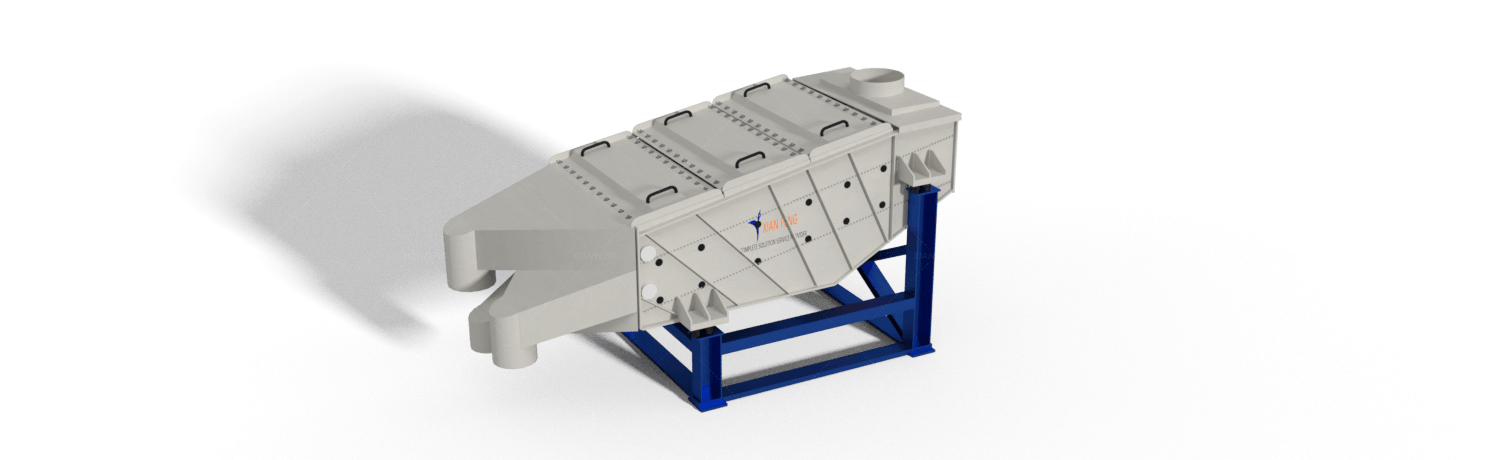

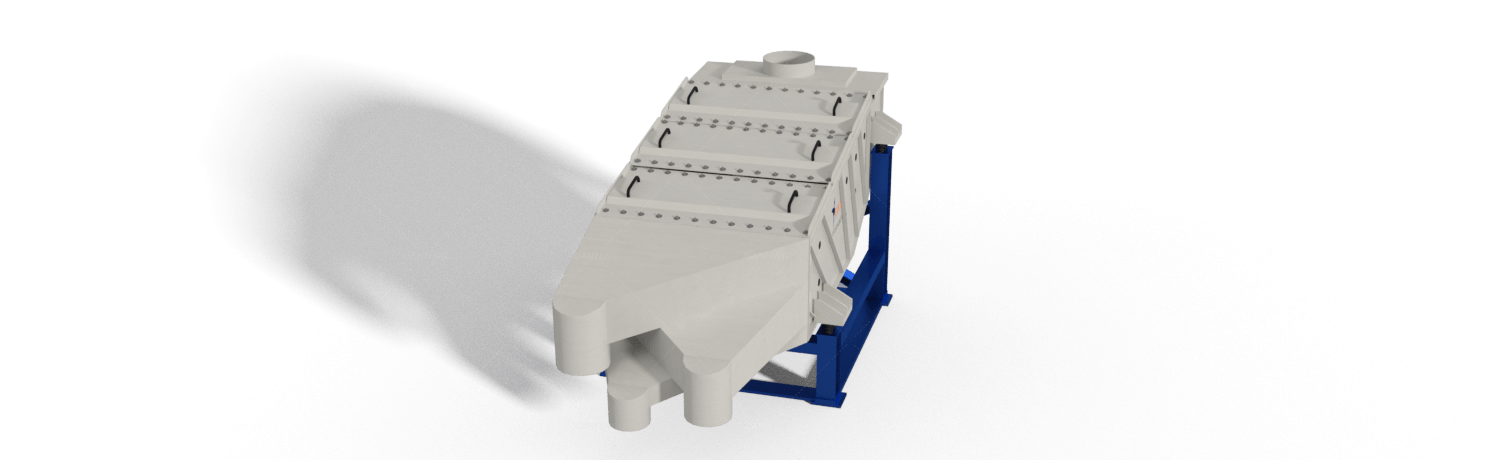

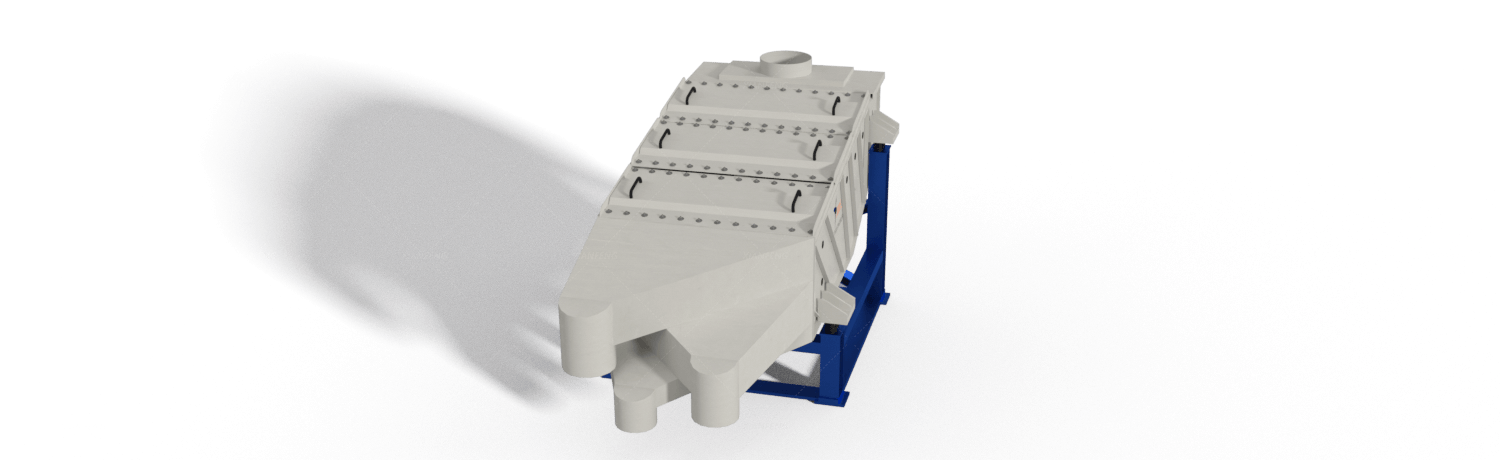

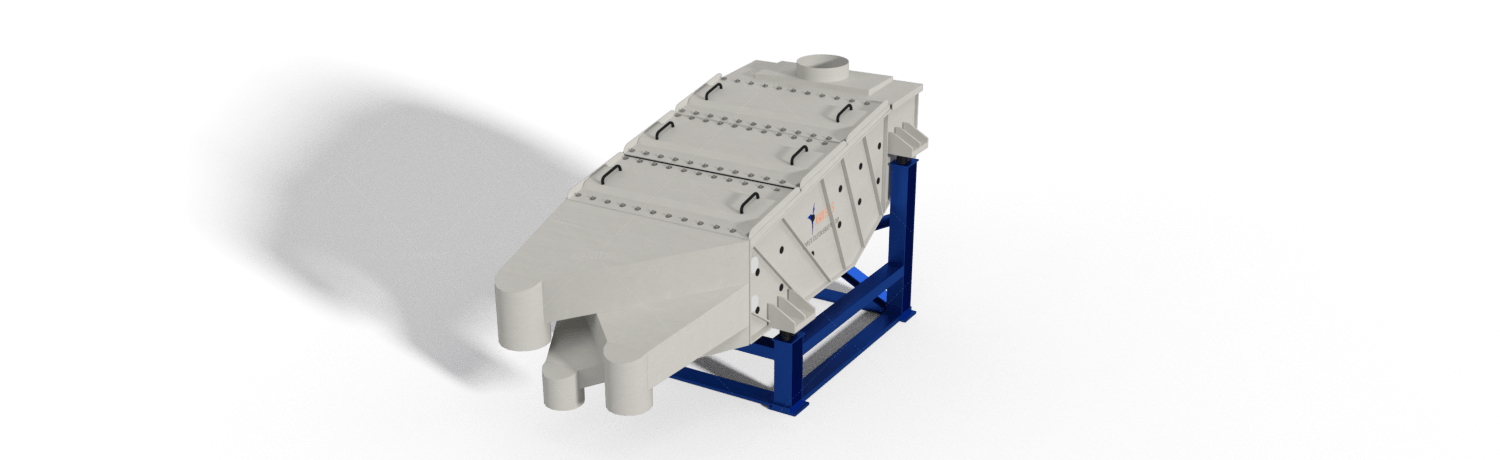

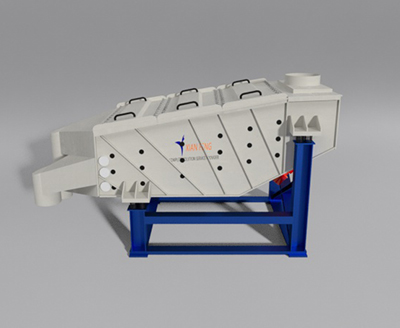

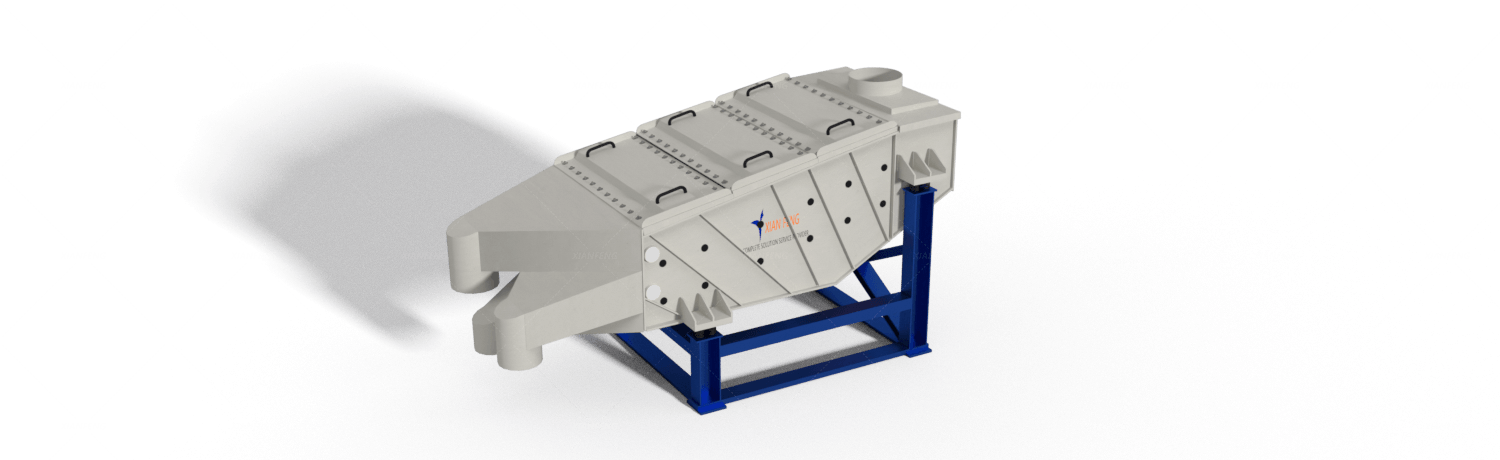

The probability screen, also known as the Mogensen screen, is an efficient screening equipment that achieves material classification based on the probabilistic motion law of particles on the screen surface. Its core feature is to optimize the screen surface parameters and vibration characteristics, allowing particles of different sizes to pass through the screen holes with different probabilities, thereby quickly completing coarse or medium screening operations. It is widely used in large-scale material pre-treatment in industries such as mining, coal, building materials, and chemical engineering, with a processing capacity of up to 180 t/h.It is a key pre-screening equipment for sand screening machines.
limestone, potash feldspar, calcite, dolomite, perlite, barite, zeolite, raw coal, tailings, etc
machine-made sand, natural sand, cement, gypsum, putty powder, etc
Compound Fertilizer, Urea, Potash Fertilizer, Feed, Recycled Materials of PE, PP, PVC, Soda Ash, Ammonium Chloride, Sodium Bicarbonate, etc

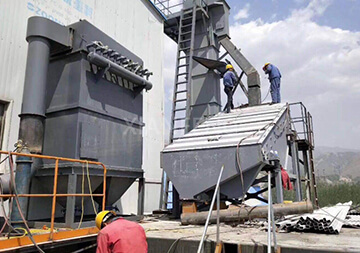

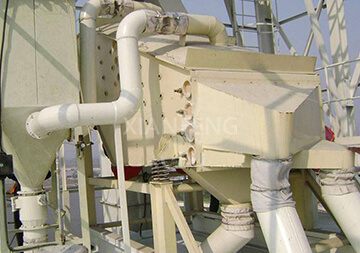

natural sand screening line, machine-made sand screening line, commercial concrete mixing plant, special mortar production line, quartz sand screening line, power plant desulfurization production line, etc

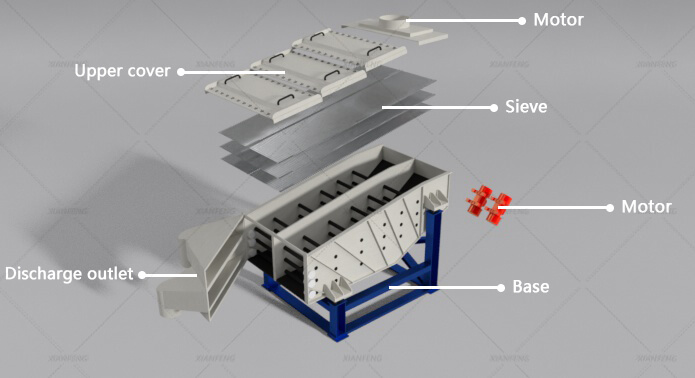

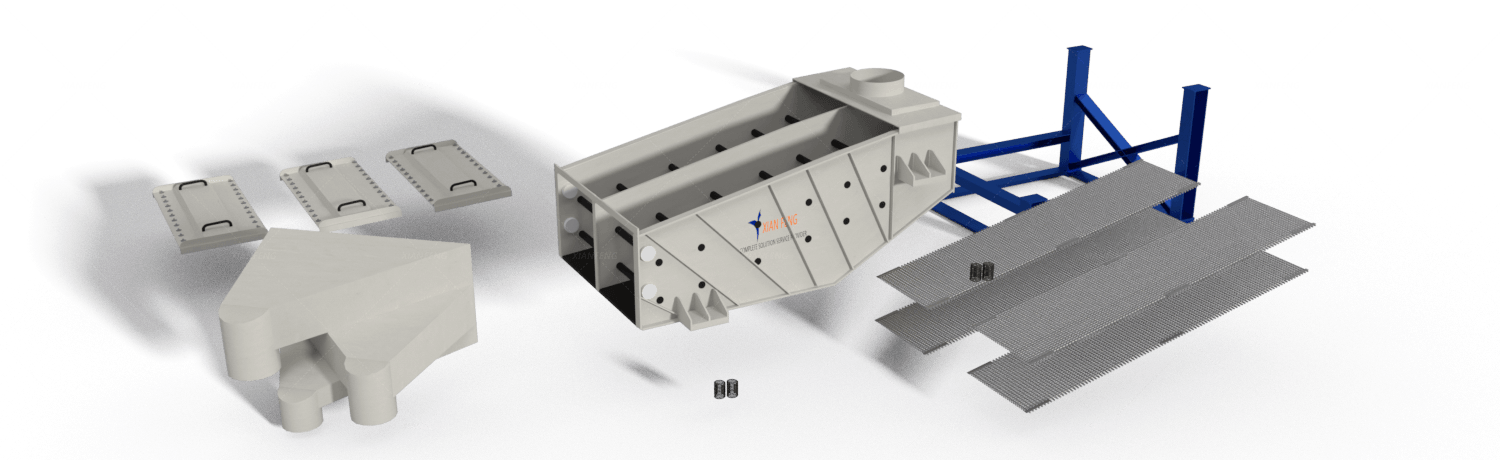

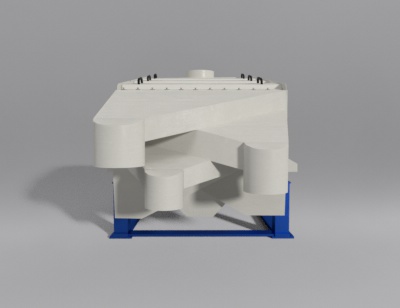

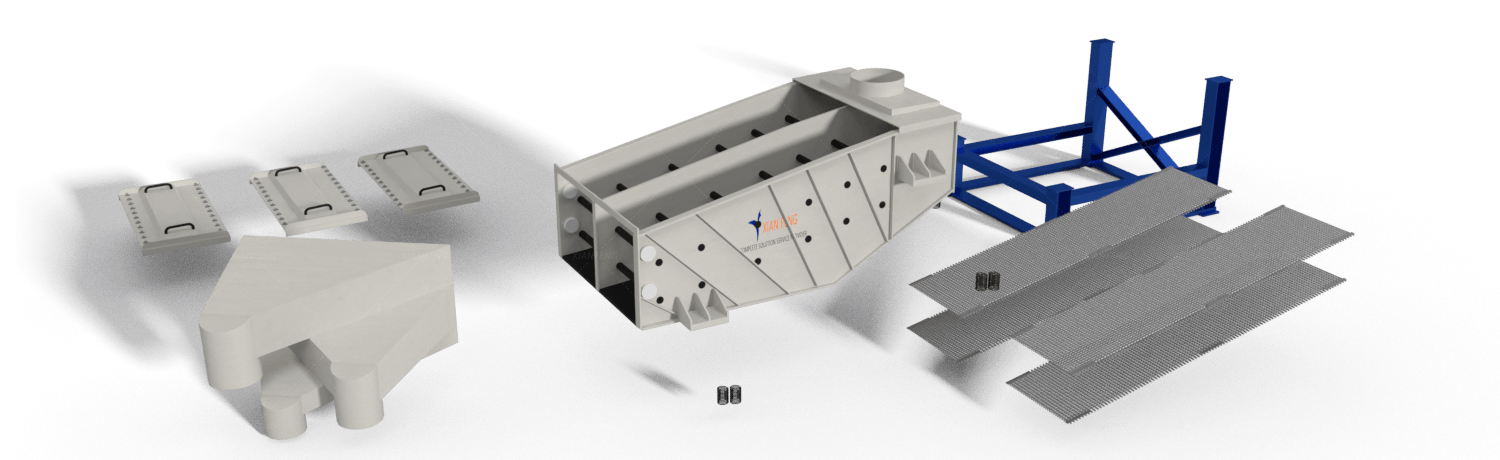

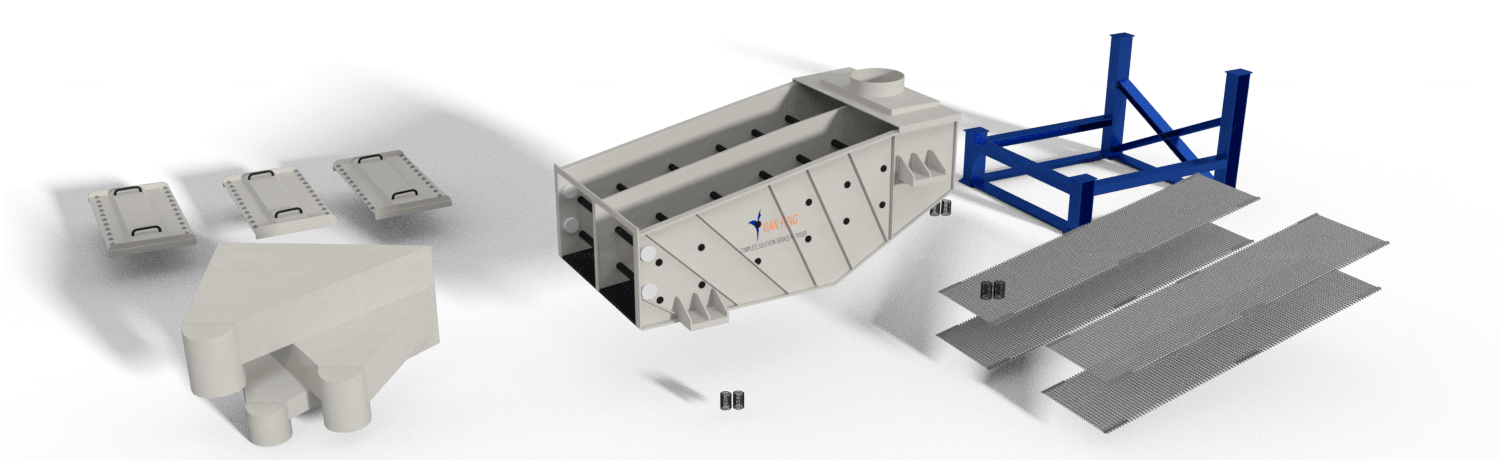

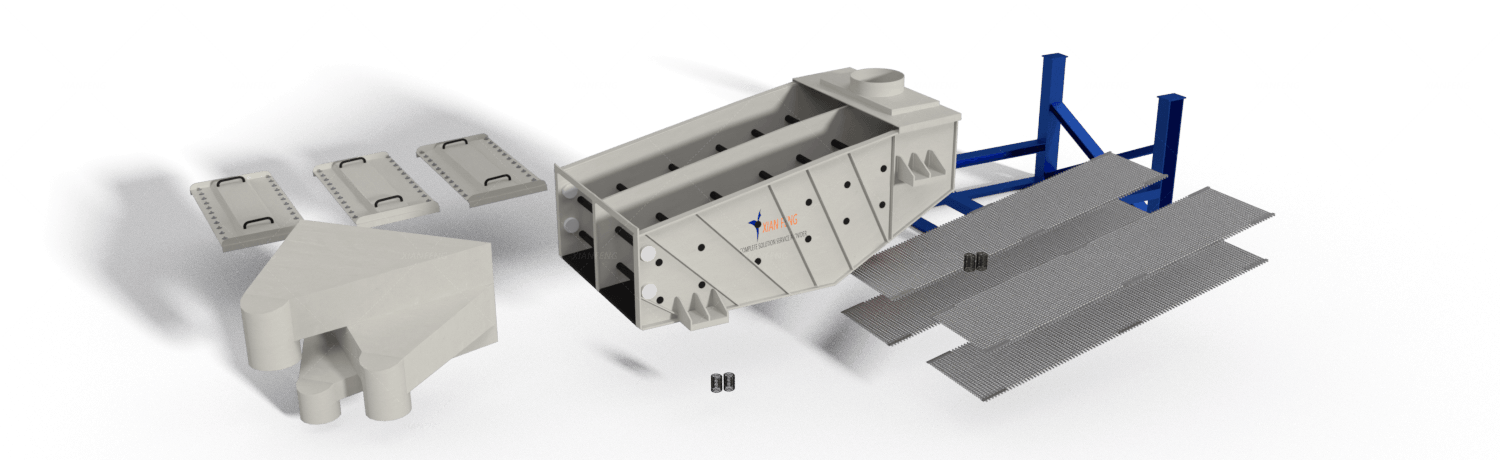

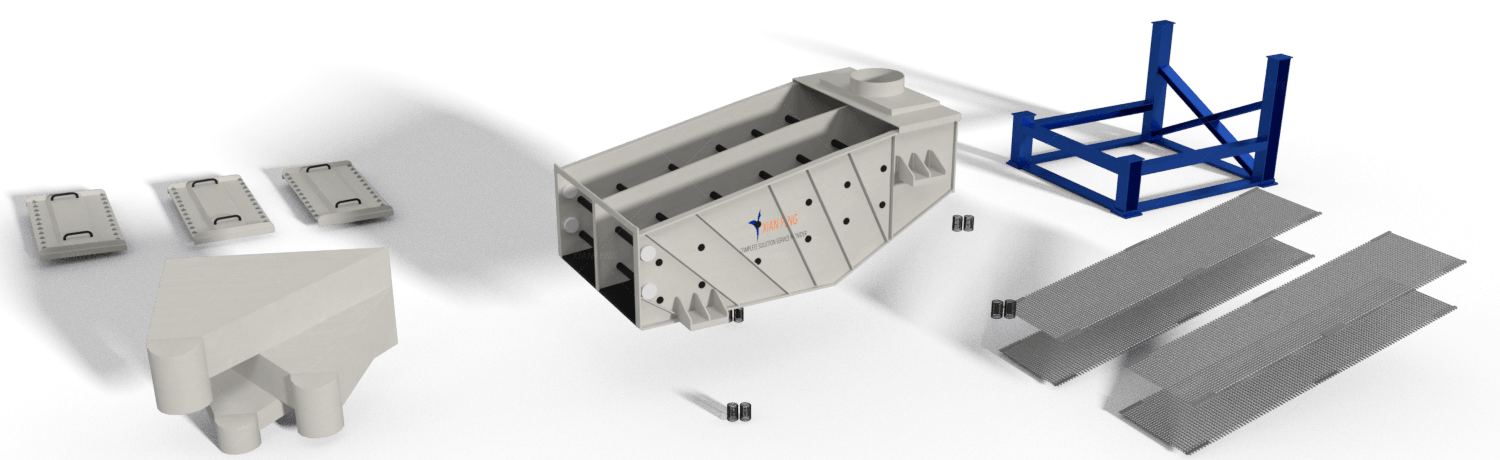

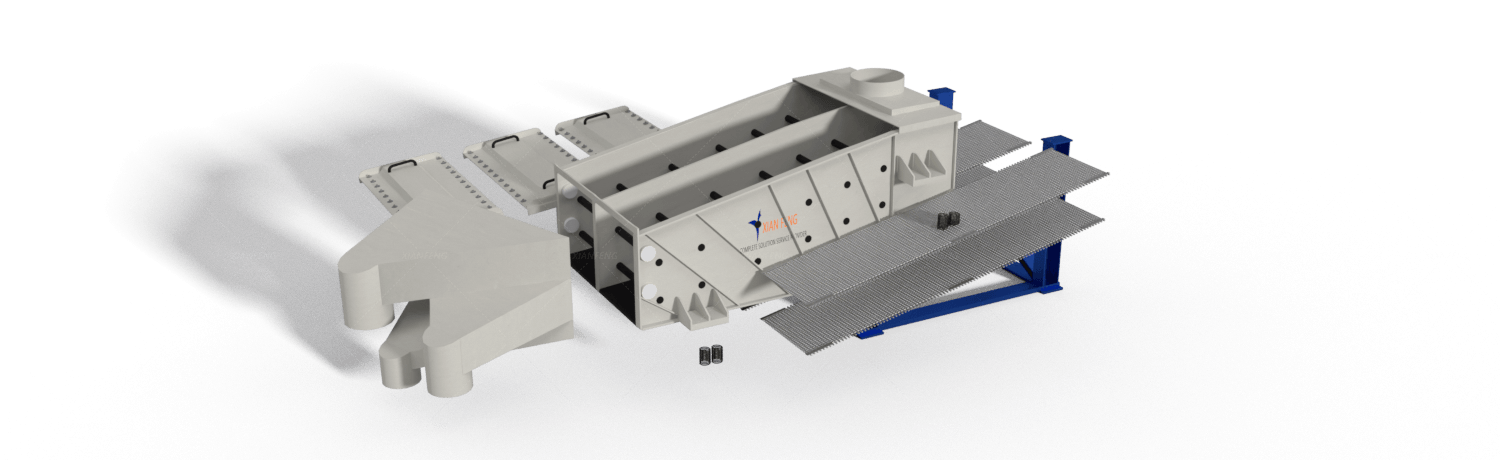

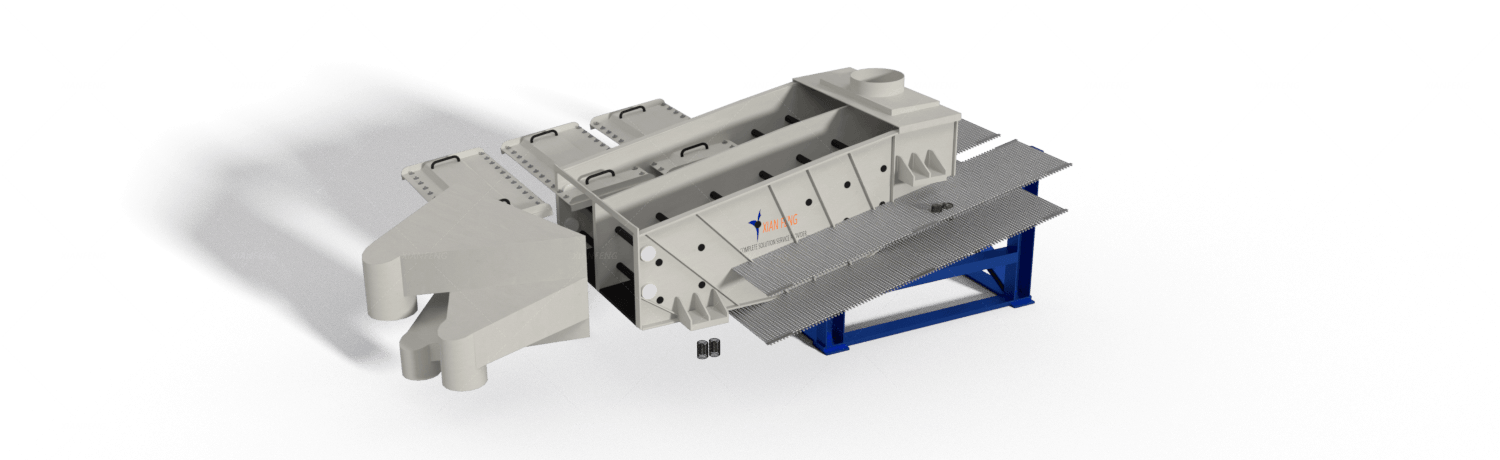

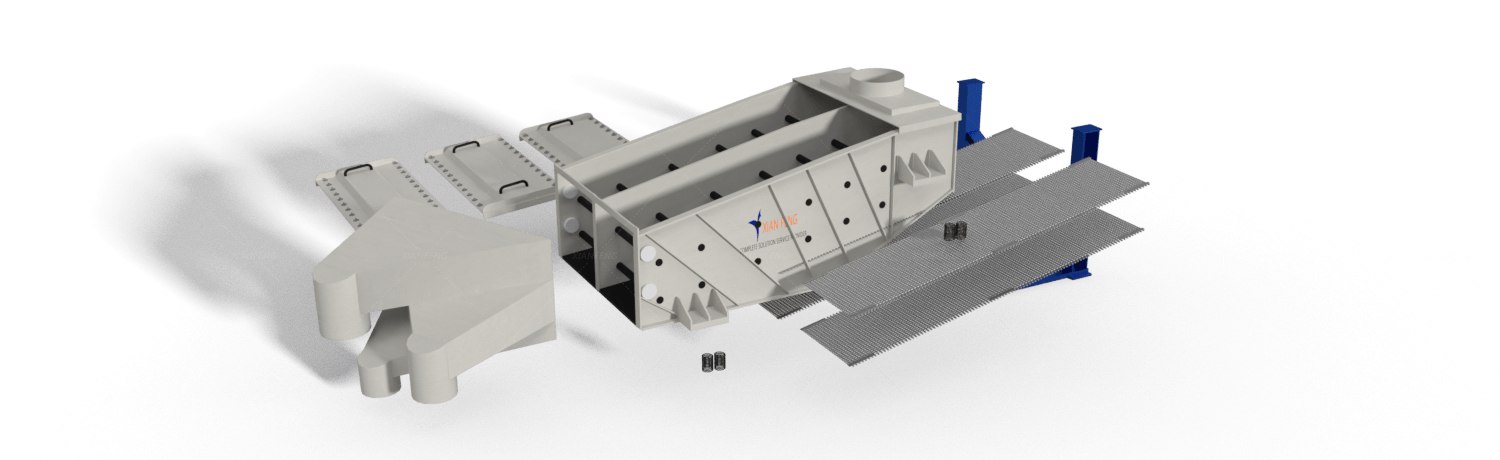

Discharge outlet
Feed inlet
Screen

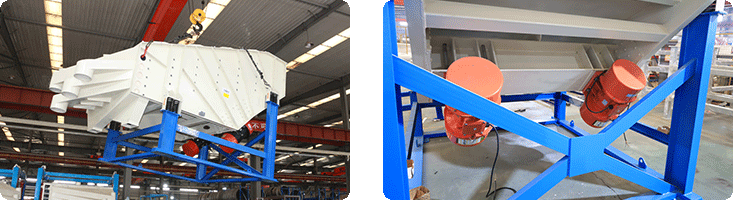

Base and motor
Spring and support
Upper cover

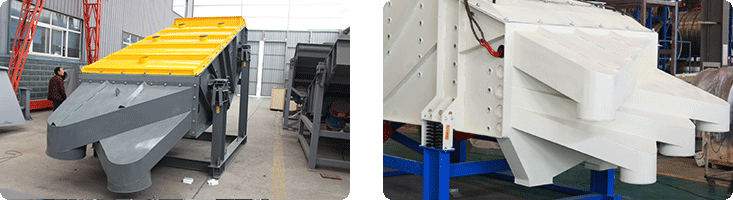

The discharge port is made of high-strength steel plate, featuring good wear resistance and sealing.
The size, angle, and quantity of the discharge outlet can be customized according to the material characteristics and production requirements, making it suitable for various industries such as mining, building materials, chemical industry, and sand and gravel.

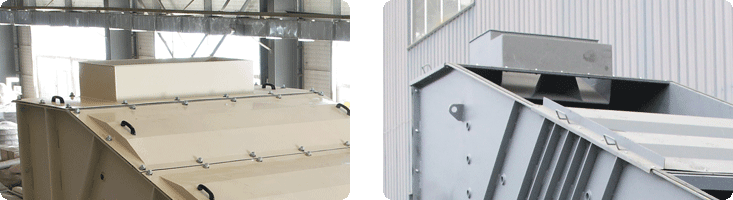

The built-in flow-guiding and equalizing structure ensures that the material is evenly spread across the screen surface, preventing localized material accumulation, uneven distribution, and impacting. This significantly enhances screening efficiency and the pass rate of finished product granularity.
Large diameter + streamlined flow guide design, customized as needed.

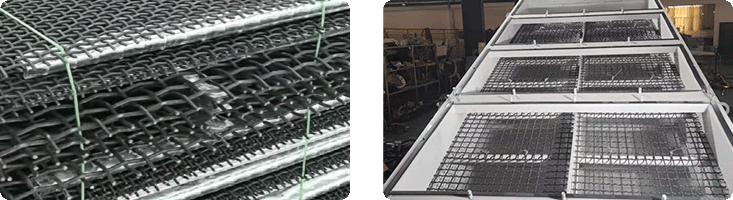

Support for 1-5 layers of screen mesh, with a single unit capacity of up to 100t/h
Quick-assembly and quick-disassembly structure, making screen replacement and maintenance super convenient
Multiple materials and specifications, universally applicable across all scenarios
Utilizing thickened channel steel/square steel profiles, the ultra-large load-bearing frame ensures stable operation.
Imported Ouli Wolong motors and general-purpose motors are optional.High-frequency strong excitation vibration ensures more efficient screening and material penetration

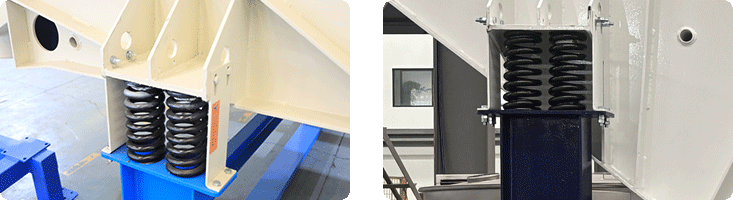

High-efficiency dual-spring shock absorption and buffering, noise reduction and machine protection for greater stability, anti-corrosion and anti-rust treatment, and outdoor weather resistance without aging
With balanced and symmetrical support, the screen body remains upright and stable, with strong load-bearing capacity to ensure long-term operation without collapse of the spring

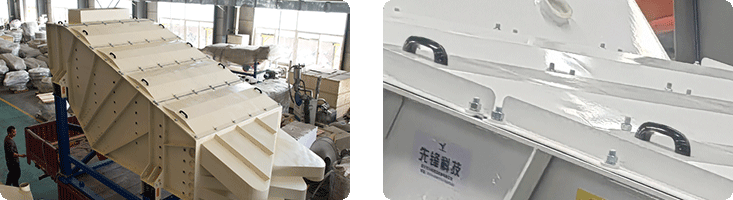

Fully enclosed top cover, dustproof, noise reduction, and more environmentally friendly
Quickly open the effort-saving handle for more efficient opening, closing, and maintenance
Visible observation window, no need to open the cover to check the working condition

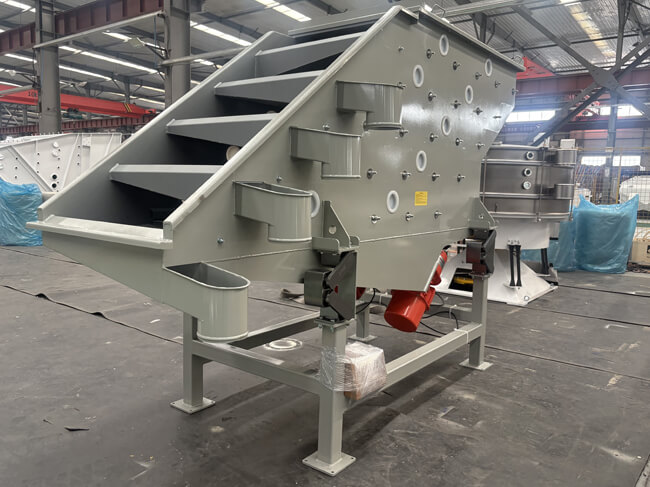

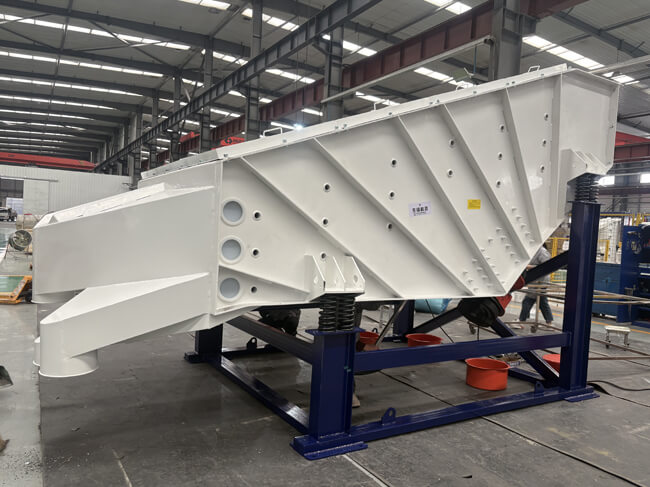

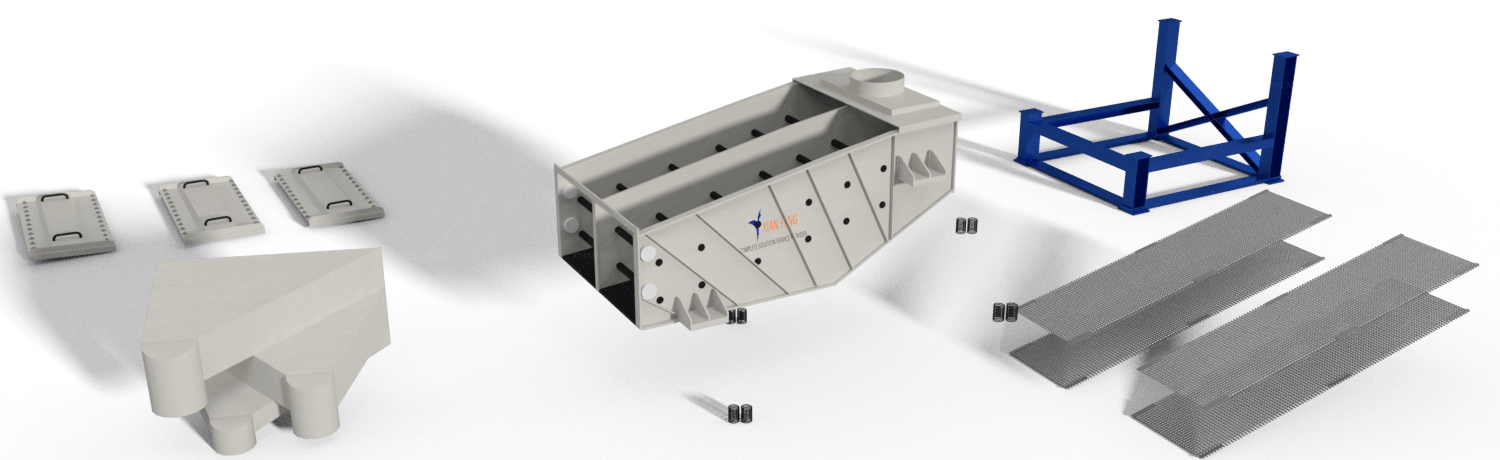

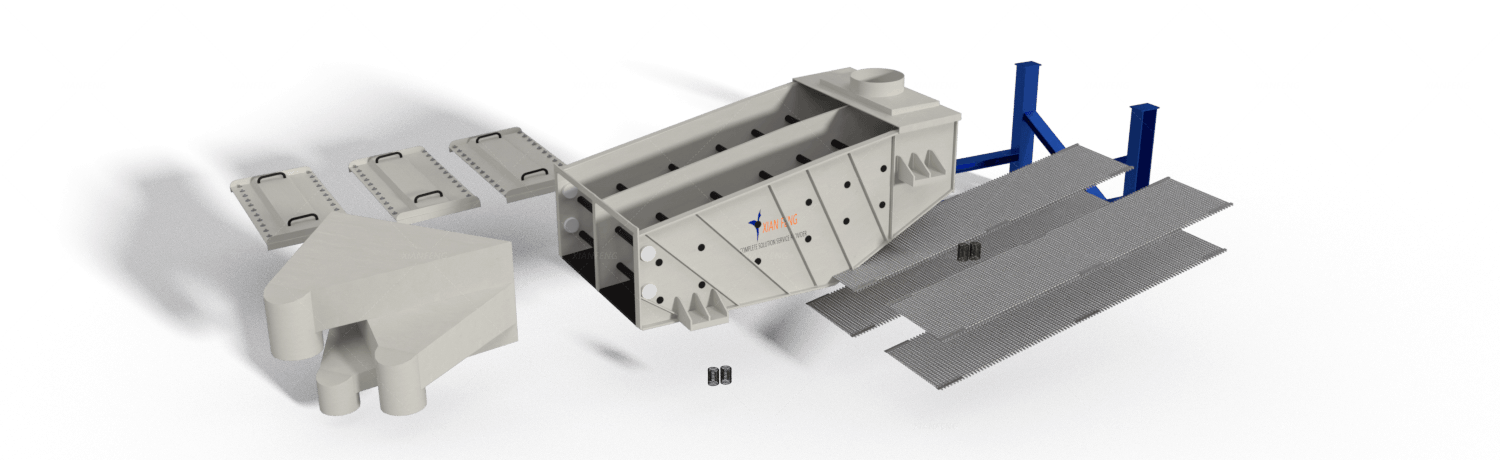

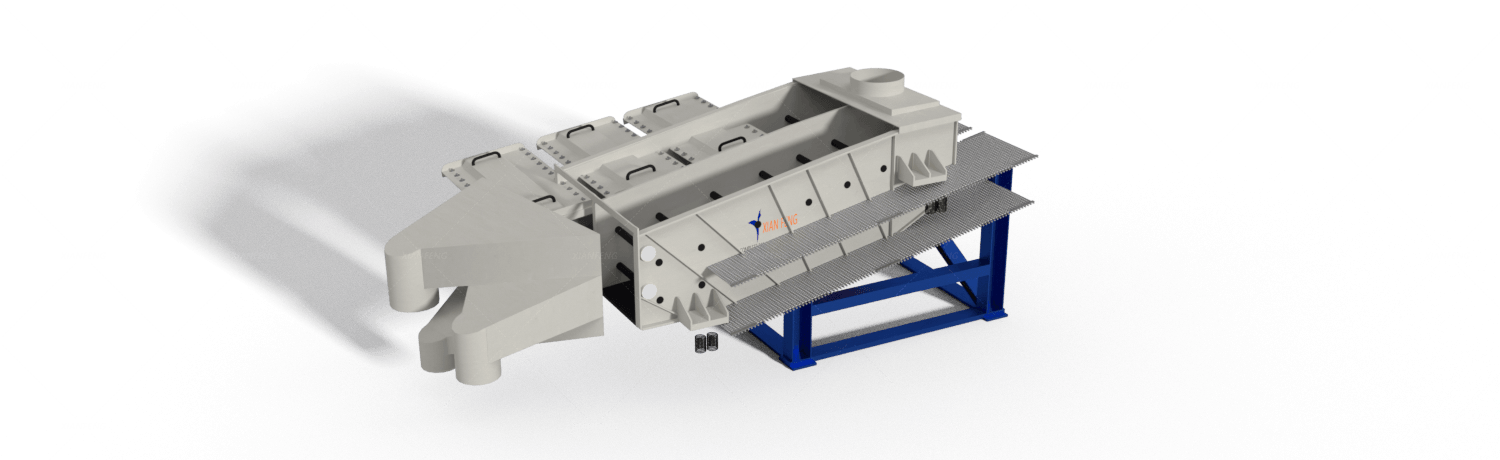

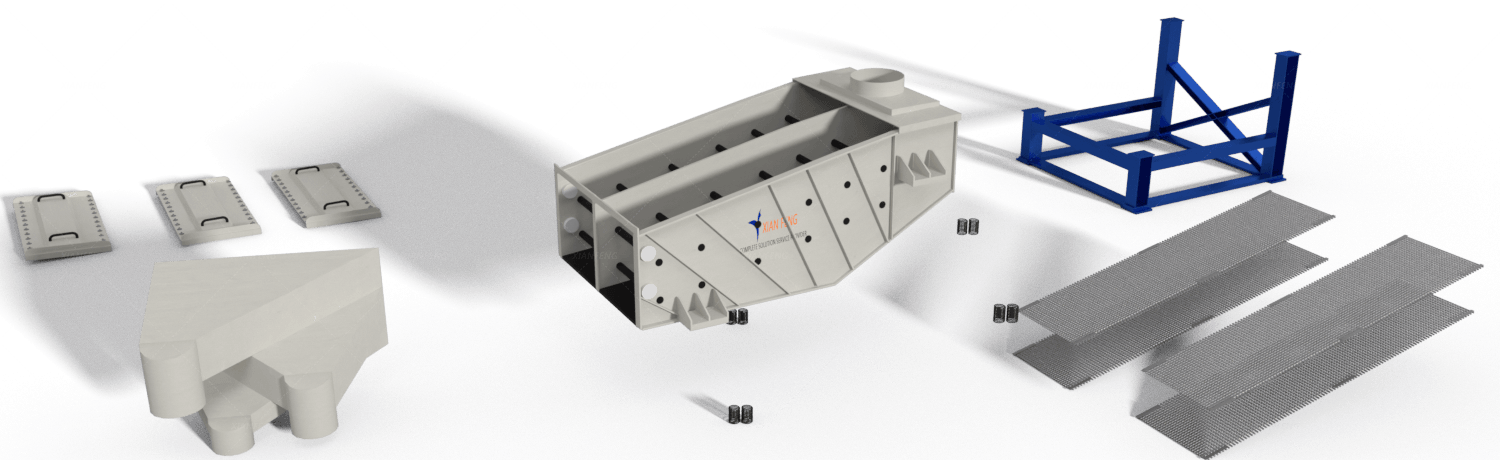

The GLS probability screen is an efficient and rapid classification device designed based on probability screening theory. Its core lies in the synergistic effect of multi-layer large-angle, large-aperture screen surfaces and high-frequency, low-amplitude linear vibration. It utilizes the difference in particle screening probabilities to achieve rapid material classification. It emphasizes "high throughput + low blockage + easy maintenance" and is widely used in industrial fields such as building materials, mining, and coal.

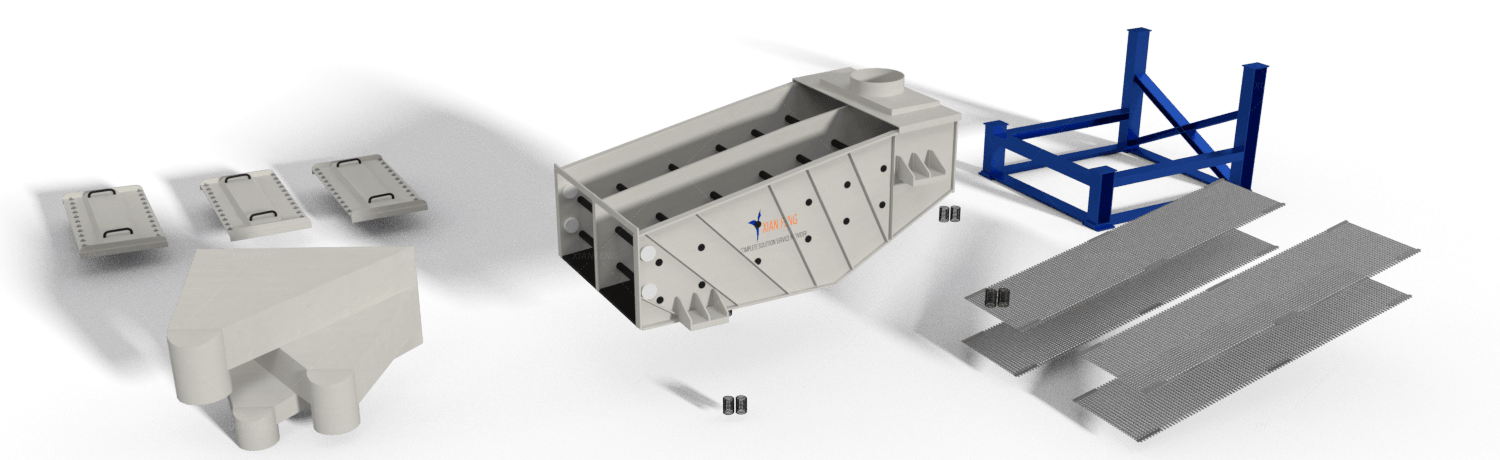

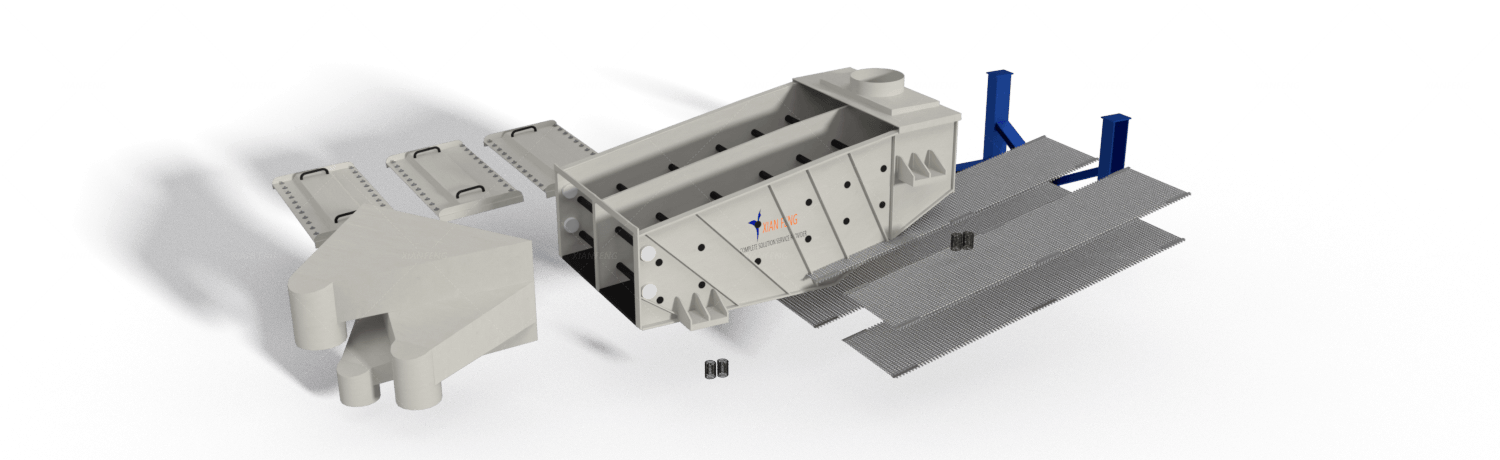

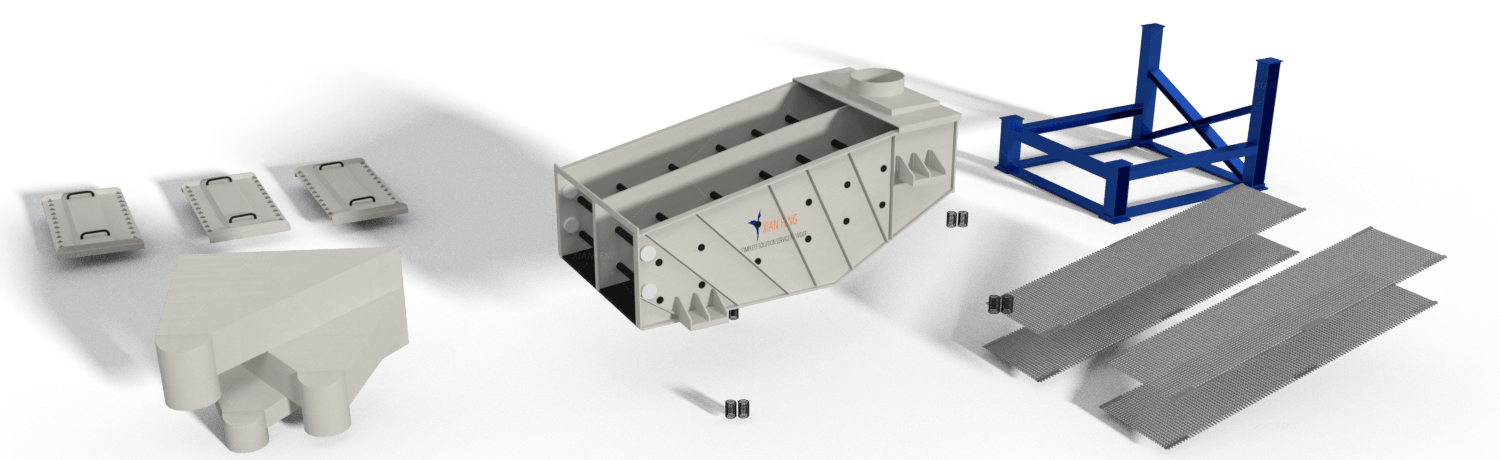

A frame that carries materials and the screen surface, typically constructed with welded steel plates, and must possess sufficient rigidity to prevent vibration and deformation
The core component of screening, typically consisting of multi-layered (1-5 layers) metal woven mesh or punched plates arranged at an angle, with the mesh size decreasing from top to bottom
Provides screening power. A common type is the "eccentric mass exciter", which can adjust amplitude and frequency to accommodate different materials
It supports the screen box and absorbs vibration energy, typically utilizing spring components to reduce the impact of equipment vibration on the foundation
| Model | GLS1036 | GLS1236 | GLS1536 | GLS1836 | GLS2036 |
| Screening area(m²) | 3.6 | 4.32 | 5.4 | 6.48 | 7.2 |
| Power(kw) | 1.1-2.2 | 1.5-4 | 2.2-5.5 | 2.2-5.5 | 3-7.5 |
| Screen inclination angle° | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Number of screening layers (S) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
High processing capacity: Due to the large inclination angle of the screen surface and the fast material movement speed (typically 0.8-1.5m/s), the amount of material passing through the screen surface per unit time is much higher than that of ordinary vibrating screens, making it suitable for large-scale production lines (such as coal mine raw coal grading, with a single unit processing capacity of up to 1000-3000t/h); High screening efficiency: Particles primarily move in a "tossing" manner, reducing material accumulation on the screen surface. Small particles have more opportunities to pass through the screen, resulting in a screening efficiency of up to 85%-95%; Simple structure and low energy consumption: no complex transmission components, light equipment weight (30%-50% lighter than ordinary screens with the same processing capacity), and operating energy consumption only 60%-80% of ordinary vibrating screens; Difficulty in blocking holes: The throwing motion of the material can effectively clear the blocked particles inside the screen holes (especially for wet or less viscous materials), reducing downtime for cleaning.
GLS probability screen: The processing capacity of a single unit can reach 15-200t, with a screen surface inclination of 15°-30°. The screening efficiency can reach 60%-80%, suitable for coarse screening and pre-screening of raw coal, ore, etc Ordinary vibrating screen: The processing capacity of a single unit can reach 1-20t, with a screen surface inclination of 5°-10°. The screening efficiency can reach 70%-85%, suitable for fine screening or moderate screening.
